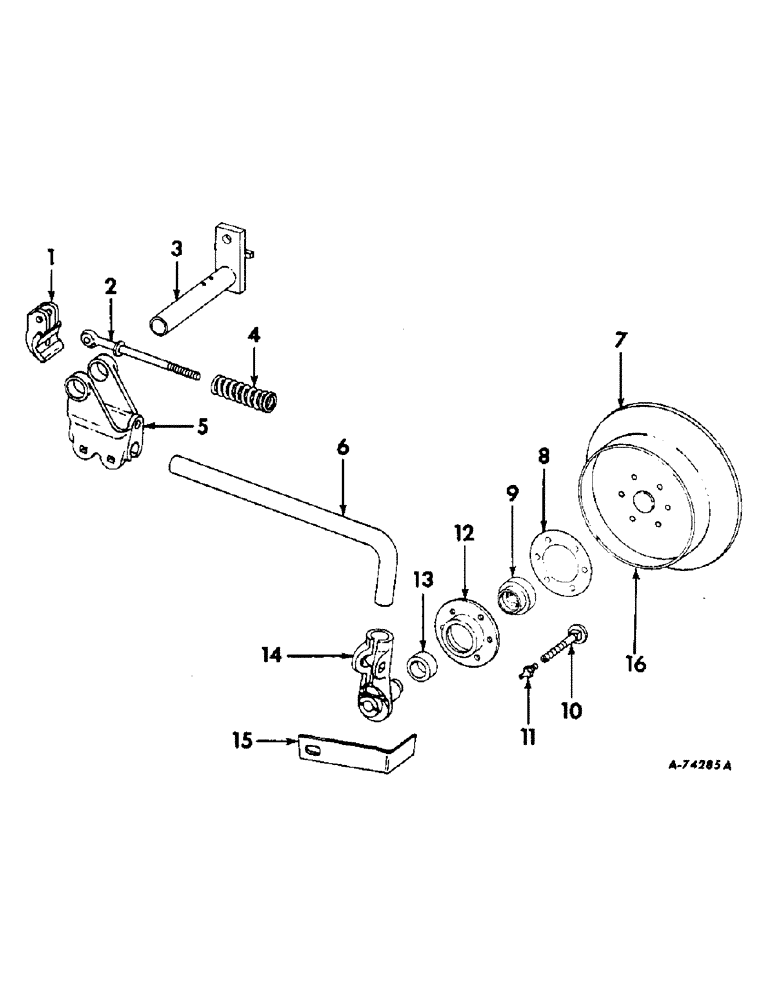

Запчасти Case IH 86 (V-09) - DISK AND BLADE COVERS, ONE PER ROW

1

478069R1

ANCHOR, pressure rod

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

477143R11

ROD

ASSY, pressure

2шт.

CP14227

PIN

5/16 x 1-3/16 std-hd

2шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

3

478068R91

BRACKET

ASSY, covering disk

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

477144R1

SPRING

pressure rod

2шт.

5

471636R1

BRACKET, pivot

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

6

468483R2

ROD

STANDARD, covering disk

2шт.

7

468484R93

DISC

DISK ASSY

2шт.

8

SA6222

GASKET

2шт.

9

SA6228

BEARING

ball

2шт.

10

517687R2

BOLT,Carriage, 1/2" - 13 x 2 1/2"

1/2-13 x 2-1/2 sq-nk-dld crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str dr lub

2шт.

12

517685R1

RETAINER

HUB, bearing

2шт.

13

SA6219

RUBBER SEAL

dust

2шт.

14

517683R3

SUPPORT

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

468488R2

SCRAPER, covering disk RH

1шт.

15

468487R2

SCRAPER, covering disk LH

1шт.

16

477550R1

BAND, disk

2шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 small b-hd

12шт.
