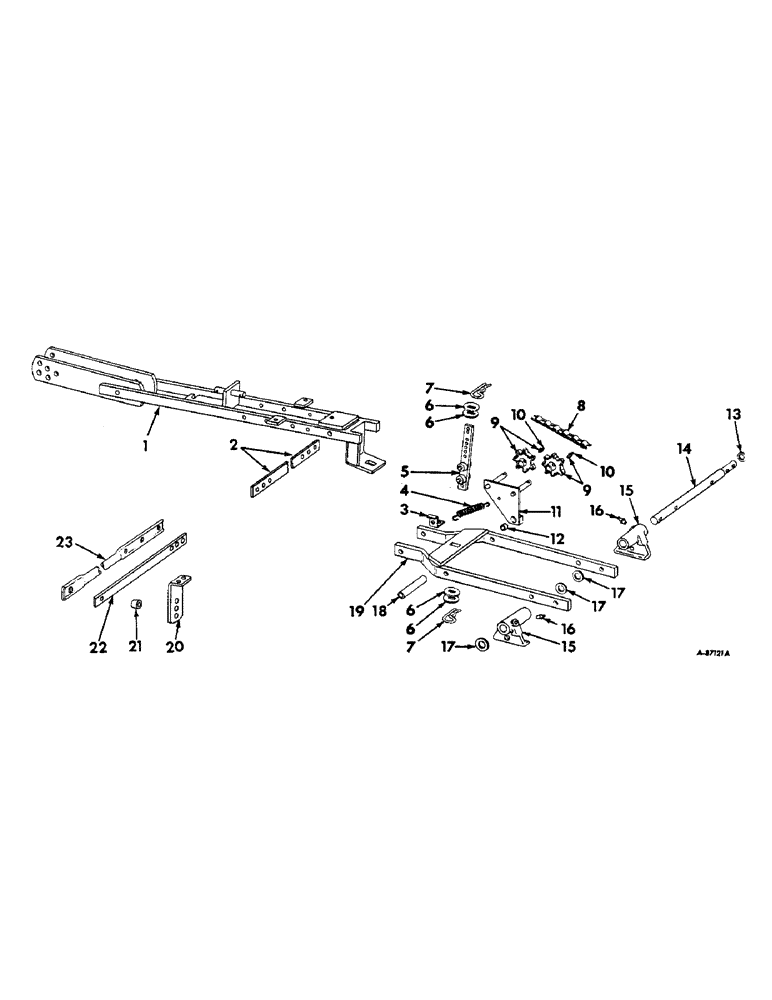

Запчасти Case IH 86 (V-07) - PLANTER FRAME AND JOCKEY BAR
№
Артикул
Название
Примечание
Количество
1
484087R91
FRAME ASSY, planter, one per row
1шт.
10620P
WASHER
21/32 x 1-1/2 x 16 ga. plain, 2 per row
1шт.
13095R1
PIN,1/4" x 1 1/4"
Split (Cotter), , 2 per row 1/4" x 1 1/4"
1шт.
17650R1
BOLT, 1/2 x 3-1/4 hex-hd mach, one per row
1шт.
19278R1
BOLT, 1/2-13 x 4-3/4 cd-zn-pltd, one per row
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per row 1/2"-13, G5
1шт.
102637
NUT,1/2"-13, G5
1 per row 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, , 1 per row 1/2"
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, , 1 per row 1/2"
1шт.
2
471600R1
BAR, jockey, one per row
1шт.
3
471192R1
ANCHOR, spring, one per row
1шт.
4
2072A
VALVE SPRING
SPRING, chain tightener, one per row
1шт.
5
471193R1
STRAP, press wheel adj, one per row
1шт.
20600R1
WASHER
9/32 x 3/4 x 11 ga C-Z, 8 per row
1шт.
106902
RIVET, 1/4 x 1 small truss hd solid, 2 per row Truss Hd, 1/4" x 1"
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), , self-opening, 1 per row 3/16" x 1"
1шт.
6
468420R1
WASHER
press wheel adjusting strap, 9 per row
1шт.
7
471194R1
AXLE PIN
PIN, 1/4 x 3-3/4 cd-pltd QA cot., 2 per row
1шт.
8
CHAIN, main drive, use 45 No. 32 steel links from a 10-ft roll No. CS-32, one per row
1шт.
8
CHAIN, extra links, use 4 No. 32 steel links from a 10 ft roll No. CS-32, one per row
1шт.
9
3621AAX
SPROCKET ASSY.
SPROCKET ASSY, w/lub fitting idler, 7-tooth, 2 per row
1шт.
10
443567
LUBE NIPPLE,1/4" x .56 lg, Drive
FITTING, 1/4 drive type str lub, 2 per row
1шт.
11
471189R91
SUPPORT
TIGHTENER ASSY, main chain, one per row
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), , self-opening, 2 per row 3/16" x 1"
1шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z, 2 per row
1шт.
18797R1
BOLT
7/16-13 x 1-3/4 C-Z hex-hd mach, one per row
1шт.
271501
SOCKET
NUT, 7/16-13 C-Z hex., one per row
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, , 1 per row 7/16"
1шт.
5097
WASHER, 15/32 x 1-1/4 x 16 ga C-Z, one per row
1шт.
12
468416R1
BUSHING, chain tightener, one per row
1шт.
13
551178R1
WASHER
25/32 x 1-3/4 x 16 ga. plain, one per row
1шт.
14
471188R2
AXLE, wheel, one per row
1шт.
13121R1
Pin, Split (Cotter), 1/4" x 1 1/2", self opening, 1 per row 1/4" x 1 1/2"
1шт.
21242R1
HEADED PIN
PIN, 1/4 x 1-3/4 C-Z std-hd, one per row
1шт.
13042R1
AXLE PIN,1/8" x 3/4"
Pin, Split (Cotter), , self-opening, 1 per row 1/8" x 3/4"
1шт.
13094R1
Pin, Split (Cotter), 3/16" x 1 1/4", self-opening, 1 per row 3/16" x 1 1/4"
1шт.
15
468410R21
BEARING ASSY, wheel axle, 2 per row
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2-13 x 1-1/2 C-Z hex-hd mach, one per row
1шт.
18497R1
BOLT,Hex, 1/2"-13 x 1 3/4", G2
1/2-13 x 1-3/4 C-Z hex-hd mach, one per row
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per row 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, , 1 per row 1/2"
1шт.
16
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 drive type str lub, 2 per row
1шт.
17
21868V
WASHER
29/32 x 1-1/2 x 16 ga. plain, 3 per row
1шт.
18
468406R1
SPACER, rail pivot, one per row
1шт.
19
468407R92
RAIL ASSY, press wheel, one per row
1шт.
17864R1
BOLT, 1/2-13 x 5-3/4 hex-hd mach, one per row
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per row 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, , 1 per row 1/2"
1шт.
20
477098R1
BAR, stabilizer jockey
1шт.
190256
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
SCREW, 1/2-13 x 4-1/2 hex-hd cap
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
102637
NUT,1/2"-13, G5
2шт.
21
519444R1
SPACER
1шт.
22
477100R1
BAR, center jockey
2шт.
271562
SHIELD,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd cap
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
102639
NUT,5/8"-11, G5
1шт.
23
481630R1
BAR, center jockey, for 4-row planters
2шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd cap
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
102639
NUT,5/8"-11, G5
1шт.
Выбрано товаров: 62
