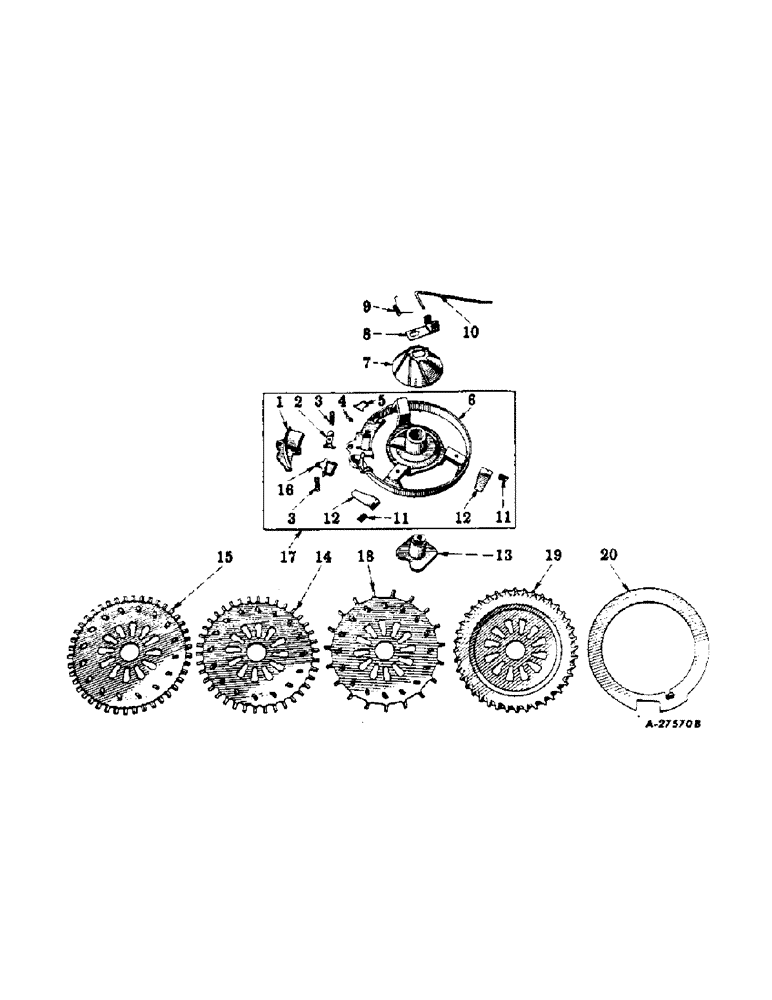

Запчасти Case IH 86 (V-31) - COTTON PLANTING EQUIPMENT, FOR COMBINATION HOPPER, ONE PER ROW

1

486796R1

CAP

pawl cover

1шт.

114380

NUT

1/4-20 sq. machine screw

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 slt-rd-hd mach

1шт.

2

621721R5

KNOCKER

1шт.

3

PO51

SPRING

cut-off and knocker

2шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITITNG, 3/16 drive type str lub cottom bottom

1шт.

5

13607AB

HINGE

GATE, hinged

1шт.

6

621713R31

BOTTOM COMPLETE, cotton

1шт.

7

621716R1

PLATE

cotton agitator

1шт.

8

621725R92

ARM

COMPLETE, agitator, main piece

1шт.

15142R1

BOLT (SPREADER)

BOLT, 3/8 x 3 sq-neck crg.

1шт.

102635

NUT,3/8"-16, G5

1шт.

551173R1

WASHER

13/32 x 1-1/8 x 16 ga.

1шт.

9

PO26760

SPRING

agitator

1шт.

10

622259R1

ARM

spring agitator

1шт.

11

445135

NUT

#10-24 machine spring nut

2шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

#10-24 x 1/2 slt-rd-hd mach

2шт.

12

PO16047A

VALVE SPRING

SPRING, seed

2шт.

13

480698R1

STUD

agitator drive

1шт.

14

621717R3

PLATE

cotton seed, 38 large cells, requires 622481R1 filler ring

1шт.

15

621719R3

PLATE

cotton seed, 42 cells

1шт.

16

621723R1

KNIFE

CUT-OFF

1шт.

17

486797R91

BOTTOM

ASSY, cotton

1шт.

18

622424R1

PLATE

seed, 19 large cells, for gin run and reginned cotton, special

1шт.

18

477025R1

PLATE

seed, 16 cells 5/16 x 11/32, for machine delinted cotton seed

1шт.

18

477026R1

PLATE

seed, 16 cells 3/8 x 13/32, for machine delinted cotton seed

1шт.

18

477027R1

PLATE

seed, 16 cells 7/16 x 17/32, for machine delinted cotton seed

1шт.

18

477028R1

PLATE

seed, 16 cells 1/2 x 19/32, for machine delinted cotton seed

1шт.

19

622480R1

PLATE

seed, 40 small tin cells, for acid and machine delinted cotton seed, requires 622481R1 filler ring

1шт.

20

622481R1

RING

filler, for 621717R3 and 622480R1 seed plates

1шт.
