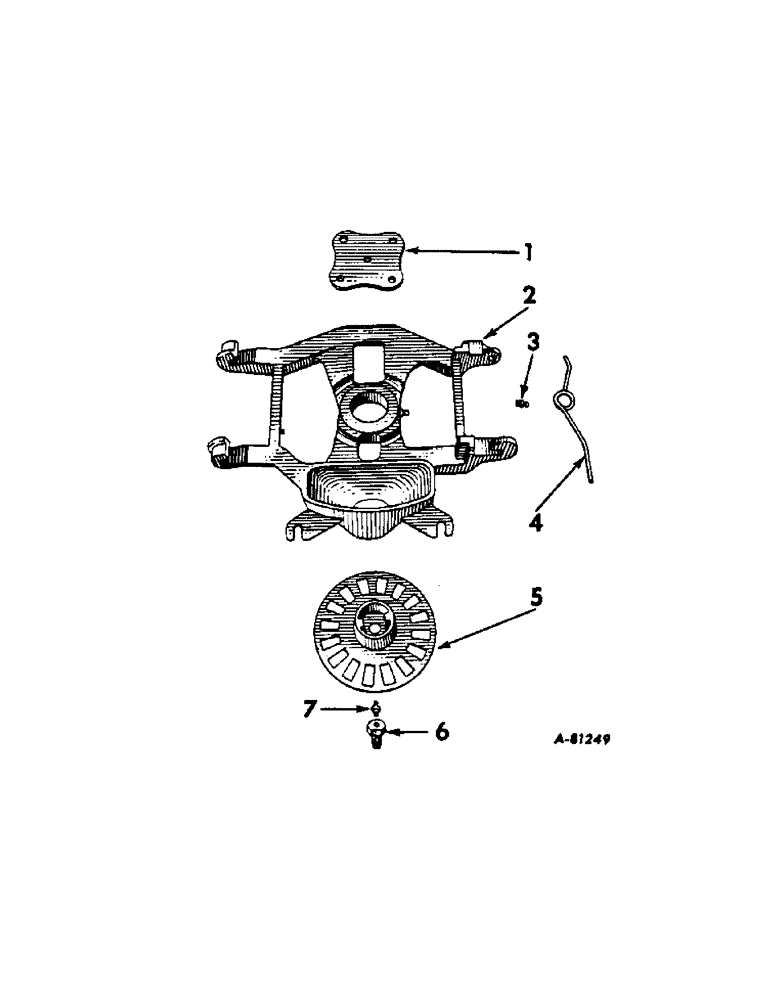

Запчасти Case IH 86 (V-29) - DRIVE PLATE, FOR TYPE C DUPLEX HOPPER W/COMBINATION HOPPER

1

479918R1

PLATE, drive

1шт.

2

517091R11

BRACKET W/LUB, fitting assembly

1шт.

Q3532

AXLE PIN

PIN, 5/16 x 2-11/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Ext. prong 1/8" x 3/4"

1шт.

3

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 str. drive

1шт.

4

PO17885

SPRING, hopper hold-down

1шт.

5

479919R1

PLATE, bearing

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

479917R1

BOLT, ring gear

1шт.

7

66584D

FITTING

3/16 str drive type lub

1шт.
