Запчасти Case IH 86 (V-27) - COMBINATION SEED HOPPER, STRAIGHT SIDE, ONE PER ROW

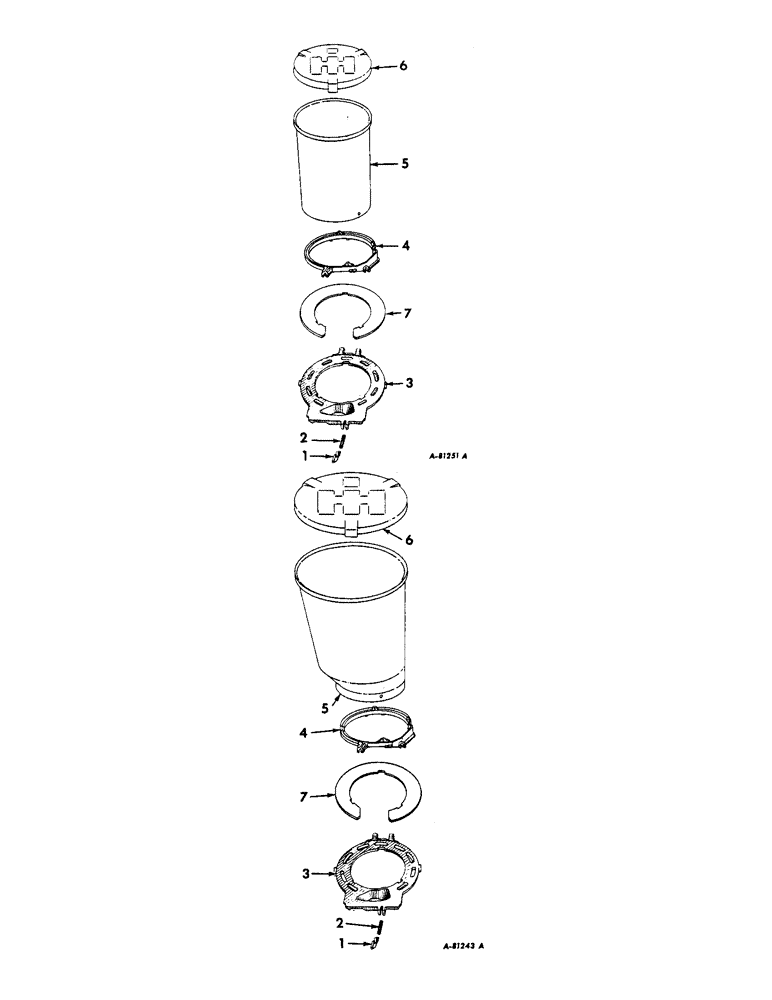

Схема запчастей Case IH 86 - (V-27) - COMBINATION SEED HOPPER, STRAIGHT SIDE, ONE PER ROW
6
5
2
1
7
7
4
5
6
2
3
4
3
1

Артикул

Название

Примечание

Количество

1

621710R1

LATCH

hopper bottom plate

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

2

606245R1

SPRING

latch

1шт.

3

621704R2

PLOW BOTTOM

PLATE, hopper bottom, for service replacement order one plate 488816R1 and one bottom plate 488815R1

1шт.

3

488815R1

PLATE, hopper bottom

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22078R1

PIN, 5/16 x 3-5/8 C-Z std-hd

1шт.

4

478563R1

RING

combination hopper bottom

1шт.

5

478559R11

HOPPER

ASSY, fiberglass offset seed

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

611344R1

WASHER

11/32 x 7/8 x 11 ga C-Z

4шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int. tooth lock

4шт.

6

474852R1

COVER

polyethylene offset seed hopper

1шт.

7

488816R1

RING

PLATE, wear ring

1шт.

Выбрано товаров: 14
