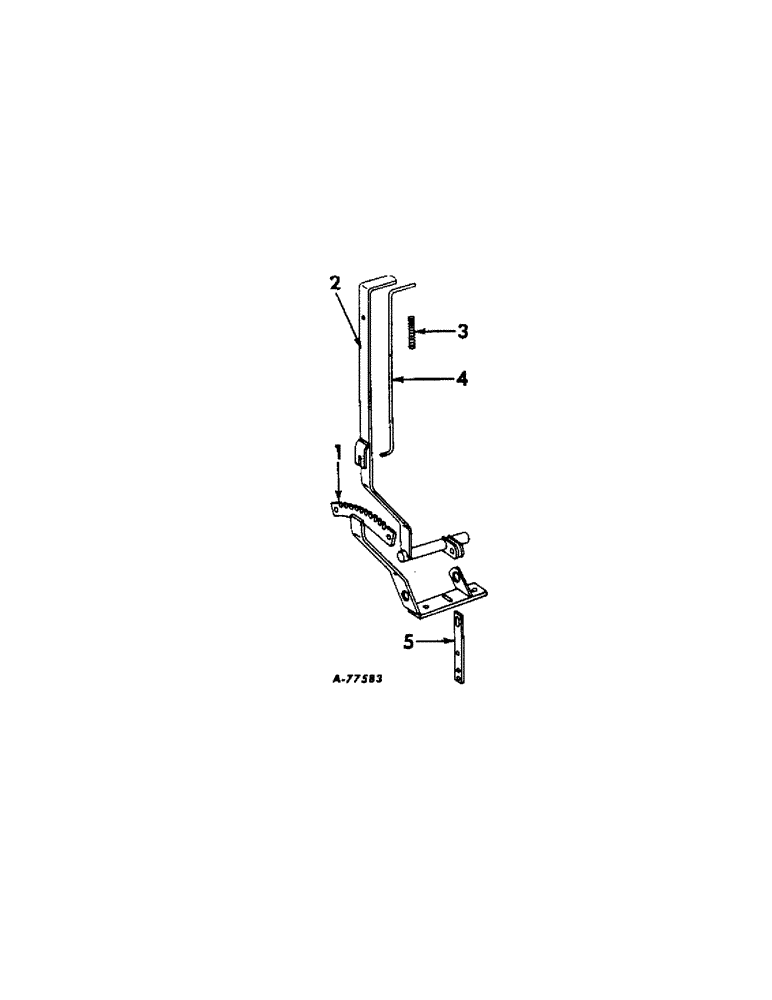

Запчасти Case IH 86 (V-26) - HAND LEVER DEPTH CONTROL ATTACHMENT, 2 FOR 4-ROW, 3 FOR 6-ROW

1

477029R91

QUADRANT ASSY, lever

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2-13 x 1-3/4 hex-hd mach

4шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

477034R91

LEVER ASSY, adjusting

2шт.

V710

PIN,5/16" x 1 1/16"

5/16 x 1-1/16 std-hd

2шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

13139R1

PIN, 1/4 x 1-3/4 self-opening cot.

2шт.

3

M92

SPRING

latch rod

2шт.

4

477039R1

ROD, latch

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

25457B

PIN

5/16 x 3/4 spec-hd cot.

2шт.

5

477040R1

STRAP, adjusting

2шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

16шт.

106902

RIVET, 1/4 x 1 small truss-hd solid Truss Hd, 1/4" x 1"

4шт.

471194R1

AXLE PIN

PIN, quick-attachable cd-pltd cot.

2шт.
