Запчасти Case IH 86 (V-25) - FOOT BOARD ATTACHMENT

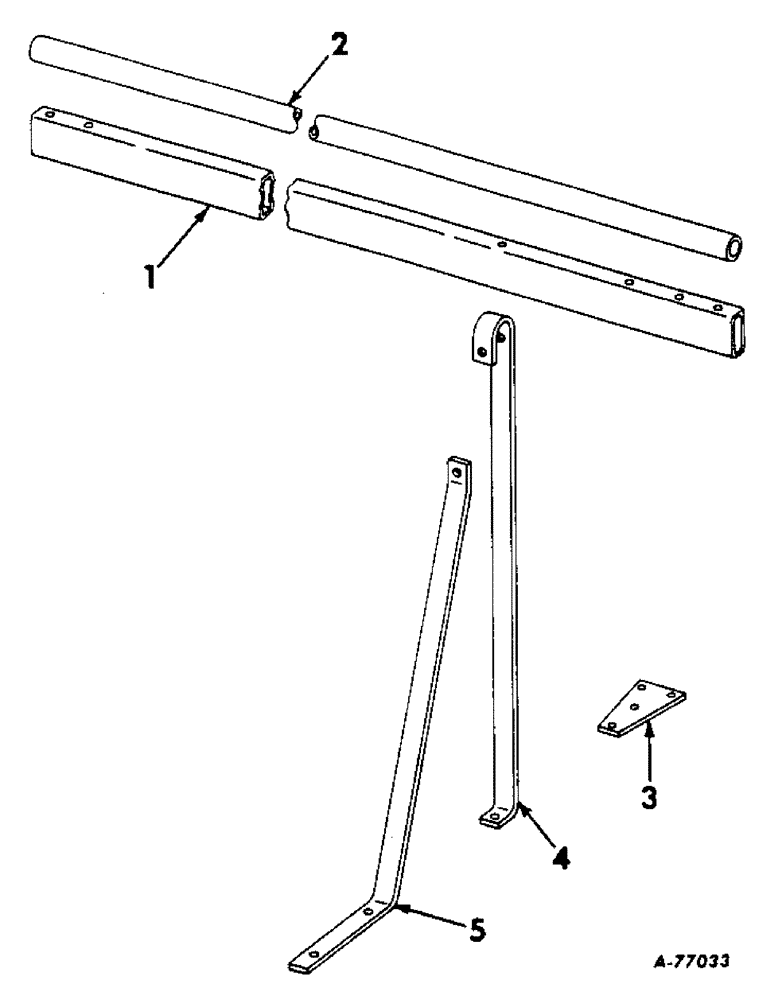

Схема запчастей Case IH 86 - (V-25) - FOOT BOARD ATTACHMENT
1
2
3
5
4

Артикул

Название

Примечание

Количество

1

471607R1

SUPPORT, walk board

2шт.

2

471610R1

RAIL, hand 4-row planter

1шт.

2

471611R1

RAIL, hand 6-row planter

1шт.

3

471576R1

PLATE, support brace

4шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

8шт.

19278R1

BOLT, 1/2 x 4-3/4 C-Z hex-hd mach

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

471609R1

SUPPORT, rail

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

471608R1

BRACE, rail support

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

15326R1

BOLT, 1/2 x 6 sq-nk crg

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

Выбрано товаров: 19
