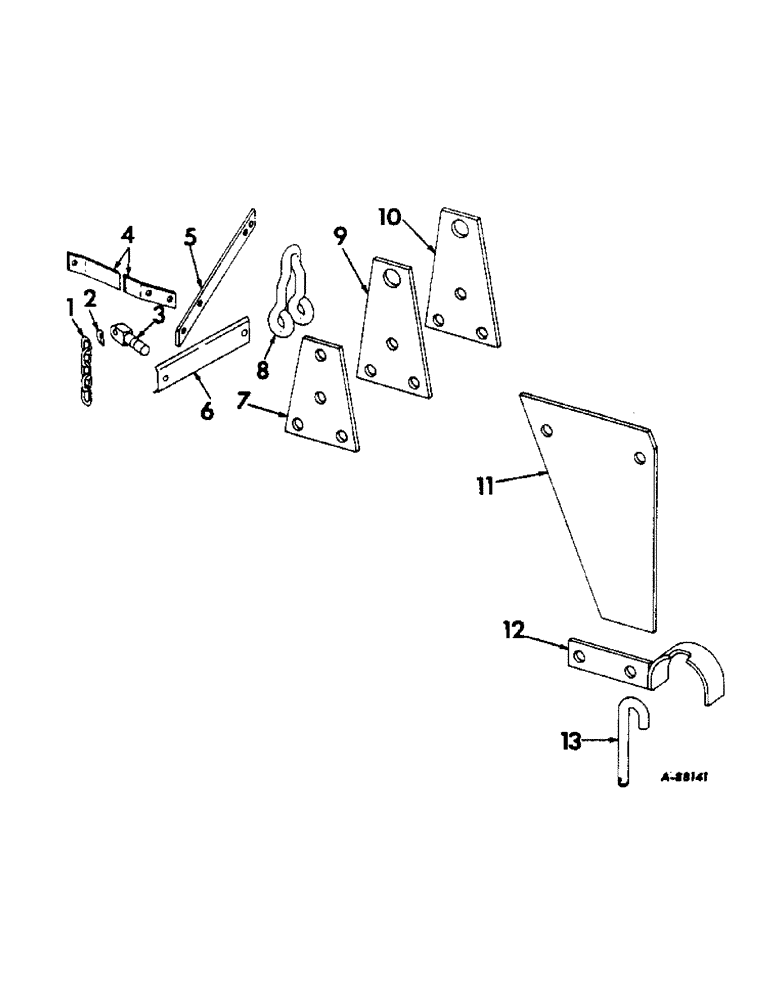

Запчасти Case IH 86 (V-24) - COMPLETING PACKAGES FRONT AND REAR SUPPORT BRACES AND CHAIN

1

471452R1

CHAIN, lift 20 links

2шт.

For Farmall 350, 460 and 656 tractors equipped with two- point fast-hitch or three-point category 11 hitch.

1шт.

For Farmall 450 and 560 tractors equipped with two-point fast-hitch.

1шт.

1

472954R1

CHAIN, lift 31 links

2шт.

For Farmall 504 and 544 tractor equipped with category I or II three-point hitch or two-point fast-hitch.

1шт.

For Farmall 706, 756, 806 and 856 tractors equipped with category II three-point hitch or two-point fast-hitch.

1шт.

2

PO26868A

WASHER, chain indicator

2шт.

For Farmall 350, 460 and 656 tractors equipped with two- point fast-hitch or three-point category 11 hitch.

1шт.

For Farmall 450 and 560 tractors equipped with two-point fast-hitch.

1шт.

For Farmall 504 and 544 tractor equipped with category I or II three-point hitch or two-point fast-hitch.

1шт.

For Farmall 706, 756, 806 and 856 tractors equipped with category II three-point hitch or two-point fast-hitch.

1шт.

3

523090R1

PIN

EYEBOLT, hitch rockshaft

2шт.

For Farmall 350, 460 and 656 tractors equipped with two- point fast-hitch or three-point category 11 hitch.

1шт.

For Farmall 450 and 560 tractors equipped with two-point fast-hitch.

1шт.

For Farmall 706, 756, 806 and 856 tractors equipped with category II three-point hitch or two-point fast-hitch.

1шт.

13139R1

PIN, 1/4 x 1-3/4 self-opening cot.

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

2шт.

3

376504R1

EYEBOLT

hitch rockshaft

1шт.

For Farmall 504 and 544 tractor equipped with category I or II three-point hitch or two-point fast-hitch.

1шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"

1шт.

4

471602R1

BRACE, support rear

2шт.

For Farmall 350, 460 and 656 tractors equipped with two- point fast-hitch or three-point category 11 hitch.

1шт.

4

471605R1

BRACE, support rear

2шт.

For Farmall 450 and 560 tractors equipped with two-point fast-hitch.

1шт.

4

483672R1

BRACE, support rear LH

1шт.

For Farmall 706, 756, 806 and 856 tractors equipped with category II three-point hitch or two-point fast-hitch.

1шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

4

483673R1

BRACE, support rear RH

1шт.

For Farmall 706, 756, 806 and 856 tractors equipped with category II three-point hitch or two-point fast-hitch.

1шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

471603R1

BRACE, support front

2шт.

For Farmall 706, 756, 806 and 856 tractors equipped with category II three-point hitch or two-point fast-hitch.

1шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

5

471601R1

BRACE, support front left

2шт.

For Farmall 350, 460 and 656 tractors equipped with two- point fast-hitch or three-point category 11 hitch.

1шт.

For Farmall 450 and 560 tractors equipped with two-point fast-hitch.

1шт.

For Farmall 504 and 544 tractor equipped with category I or II three-point hitch or two-point fast-hitch.

1шт.

5

489001R1

BRACE, support front right, 1967 and since

1шт.

For Farmall 350, 460 and 656 tractors equipped with two- point fast-hitch or three-point category 11 hitch.

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

477101R1

STRIP, rub

1шт.

For Farmall 450 and 560 tractors equipped with two-point fast-hitch.

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

471579R1

BRACKET, chain

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 C-Z hex-hd mach

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

477527R1

PIN

1/2 x 2-7/8 std-hd

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

8

471584R1

CLEVIS, chain

2шт.

Q784

PIN

3/4 x 2-15/16 std-hd

2шт.

16066R1

WASHER

25/32 x 1-1/2 x 16 ga

2шт.

13066R1

PIN, 1/4 x 1-1/2 self-opening cot. 1/8" x 1"

2шт.

9

483674R1

BRACKET, lift outside

2шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

10

483675R1

BRACKET, lift inside

2шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

11

483676R1

PLATE, rub

2шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

12

483677R91

BRACKET ASSY, spacer LH

1шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

12

483678R91

BRACKET ASSY, spacer RH

1шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

13

472572R1

ANGLE

PIN, beam locating

2шт.

For Farmall 1206 and 1256 tractors equipped with category III three-point hitch.

1шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.
