Запчасти Case IH 86 (V-20) - DISK FURROWING ATTACHMENT, 9 IN., 1967 AND SINCE

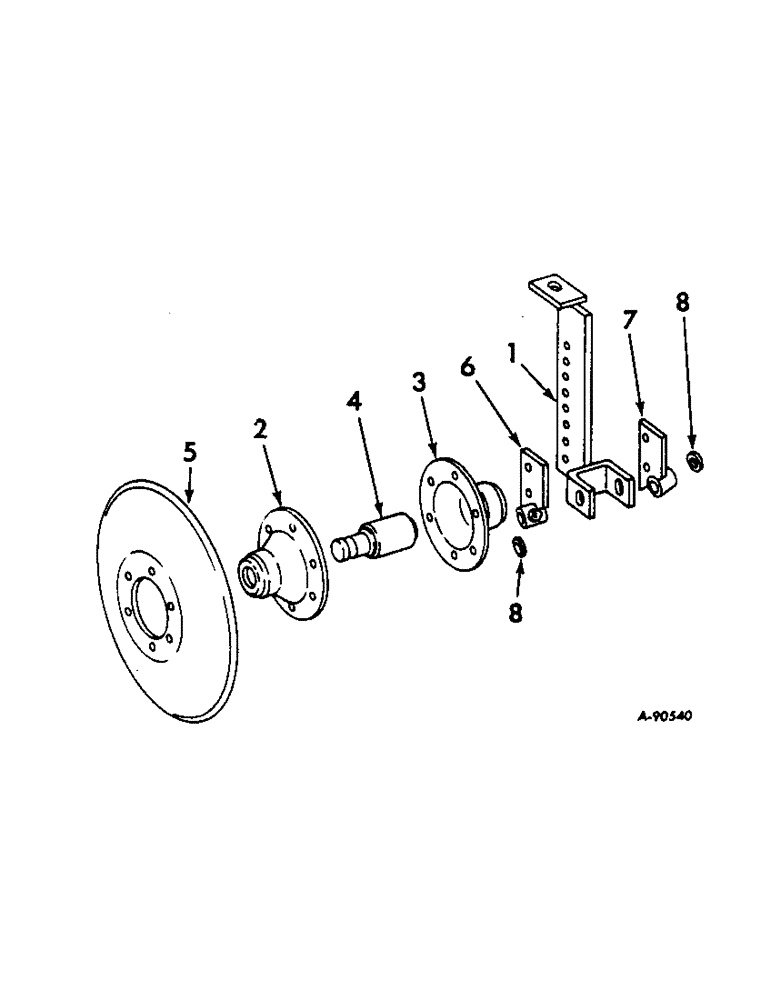

Схема запчастей Case IH 86 - (V-20) - DISK FURROWING ATTACHMENT, 9 IN., 1967 AND SINCE
6
8
1
2
5
3
4
7
8

Артикул

Название

Примечание

Количество

1

490134R1

BRACKET ASSY, disk mounting

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 C-Z sq-nk crg

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

2

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

brg inner

2шт.

3

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

brg outer

2шт.

4

ST438

BEARING

ASSY, disk ball

2шт.

5

480674R1

DISC

DISK, 9 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

6

480675R91

BRACKET

ASSY, disk LH mounting

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

480676R91

BRACKET

ASSY, disk RH mounting

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

8

480679R1

WASHER

dirt seal felt

2шт.

Выбрано товаров: 26
