Запчасти Case IH 86 (V-18) - RUNNER WINGS AND DIRT SHIELDS, ONE PER ROW

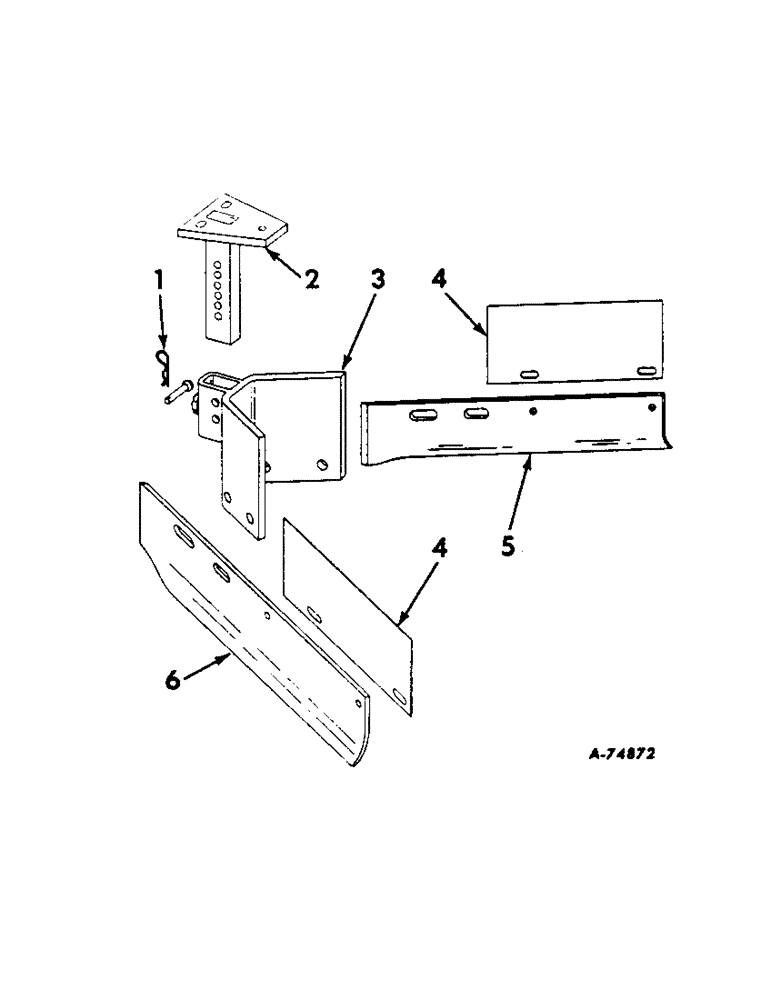

Схема запчастей Case IH 86 - (V-18) - RUNNER WINGS AND DIRT SHIELDS, ONE PER ROW
4
4
1
5
3
6
2

Артикул

Название

Примечание

Количество

1

473443R1

COTTER PIN

quick attachable cot.

1шт.

2

469323R11

STANDARD

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 hex-hd mach

3шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

3шт.

3

469320R91

BRACKET

ASSY, wing support

1шт.

102637

NUT,1/2"-13, G5

1шт.

110452

SET SCREW

1/2-13 x 1-1/2 sq-hd cup-pt set

1шт.

Q1250

PIN

1/4 x 1-7/8 std-hd

1шт.

619855R1

WASHER

11 x 3/4 x 16 ga C-Z

1шт.

4

469327R1

SHIELD

dirt

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

469326R1

RUNNER

WING, runner RH

1шт.

6

469325R1

RUNNER

WING, runner LH

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 21
