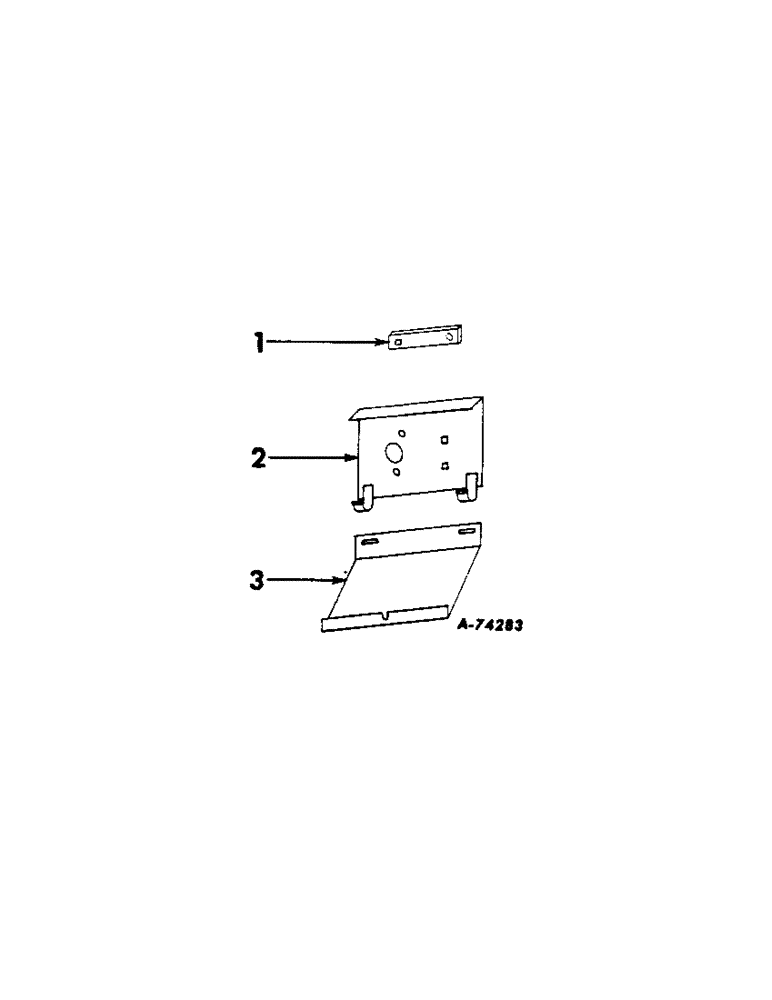

Запчасти Case IH 86 (V-18[A]) - CHAIN GUARD ATTACHMENT, ONE PER ROW

1

471544R1

SUPPORT, outer shield

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

2

471541R11

SHIELD ASSY, inner

1шт.

19760R1

BOLT, 3/8 x 5/8 cd-pltd sq-nk crg

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 C-Z wing

1шт.

3

471543R1

SHIELD, outer

1шт.
