Запчасти Case IH 86 (V-17) - GAUGE SHOE ATTACHMENT, 7 IN. WIDE, ONE PER ROW

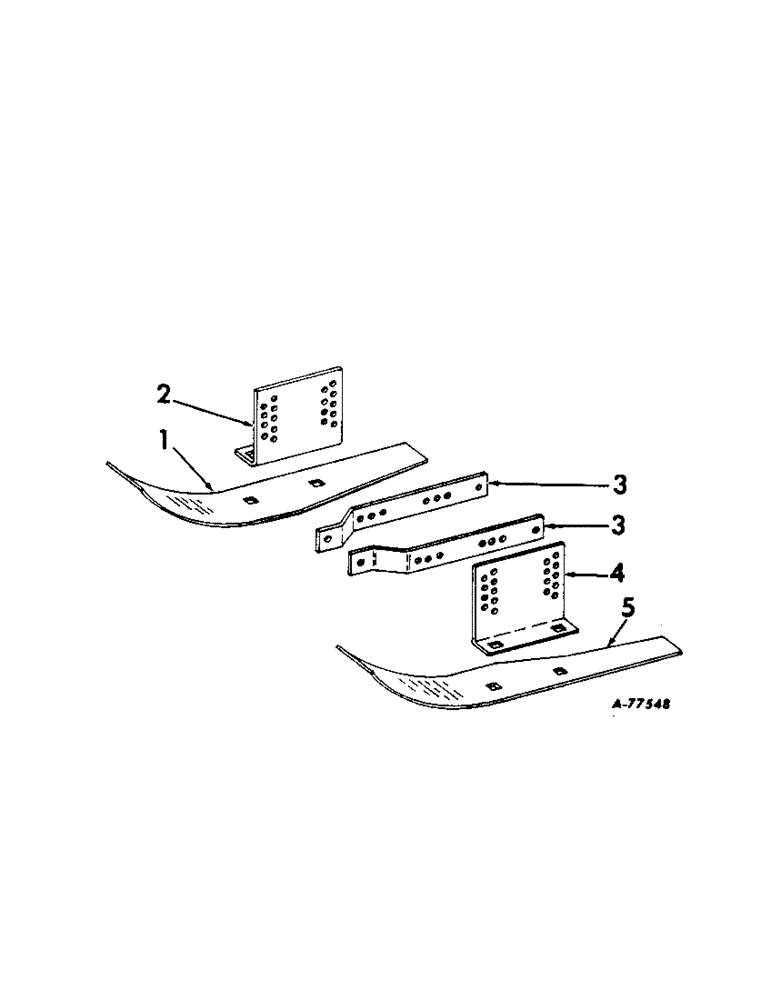

Схема запчастей Case IH 86 - (V-17) - GAUGE SHOE ATTACHMENT, 7 IN. WIDE, ONE PER ROW
5
1
2
3
4
3

Артикул

Название

Примечание

Количество

1

474660R1

SHOE

RH

1шт.

15552R1

BOLT, 7/16-14 x 1 No. 3 hd plow 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

474656R1

SUPPORT

RH

1шт.

3

474657R1

STRAP, attaching

2шт.

17649R1

BOLT, 7/16-14 x 3-1/4 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

474655R1

SUPPORT

LH

1шт.

5

474659R1

SHOE

LH

1шт.

15552R1

BOLT, 7/16-14 x 1 No. 3 hd plow 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Выбрано товаров: 18
