Запчасти Case IH 86 (V-16) - SEED FIRMING WHEEL, ONE PER ROW

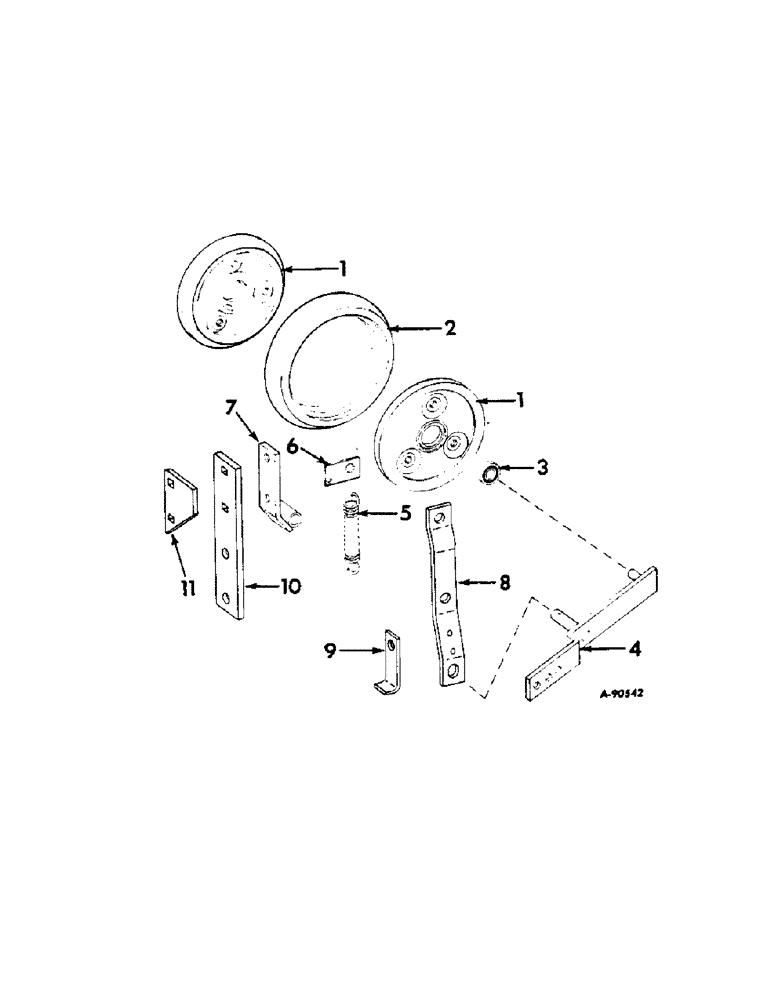

Схема запчастей Case IH 86 - (V-16) - SEED FIRMING WHEEL, ONE PER ROW
1
5
8
2
1
7
3
6
4
11
9
10

Артикул

Название

Примечание

Количество

1

527151R1

PLATE

WHEEL, seed firming disc

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 hex-hd mach

3шт.

103084

NUT, 1/4-20 hex.

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

3шт.

2

527227R1

TYRE/TIRE

TIRE, 7 x 1 in. semi-pneumatic

1шт.

3

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

1шт.

4

471214R91

BRACKET

PIVOT ASSY, wheel

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga plain

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

13069R1

PIN, 1/4 x 1 self-opening cot.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 hex-hd mach

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga plain

1шт.

147697

WASHER

5/16 x 7/8 x 16 ga plain

1шт.

5

622016R1

SPRING

extension

1шт.

6

471217R1

CLIP

spring

1шт.

7

471218R11

SUPPORT

ASSY, wheel pivot

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

490317R1

SUPPORT, firming wheel, for drill, 1967 and since

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

477834R1

STOP, firming wheel, for drill, 1967 and since

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

490315R1

BAR, stabilizer, use w/disk, 1967 and since

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 C-Z hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

11

490316R1

STOP, seed firming wheel, use w/disk, 1967 and since

1шт.

Выбрано товаров: 33
