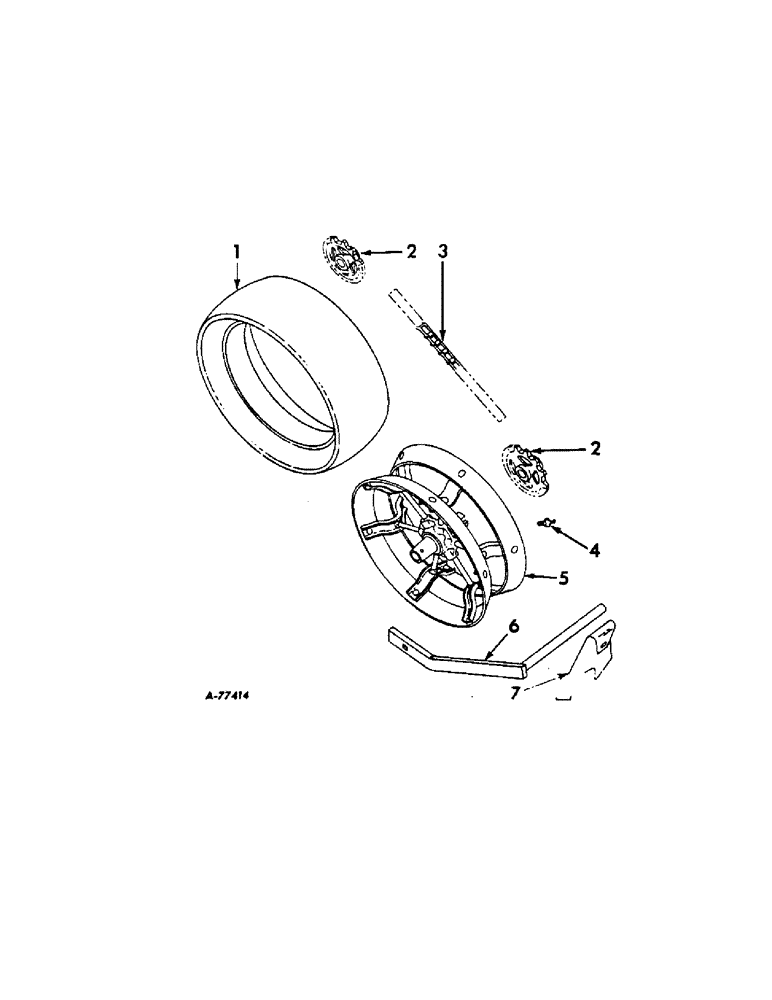

Запчасти Case IH 86 (V-15) - OPEN CENTER PRESS WHEEL, WHEEL SCRAPERS AND ZERO-PRESSURE

1

662855R1

TIRE, zero pressure, 8 x 20 in.

1шт.

1

477312R1

TYRE/TIRE

TIRE, zero pressure traction type, 8 x 20 in.

1шт.

2

PO1763

DRIVE SPROCKET

SPROCKET, 7-tooth

1шт.

585614R1

PIN

Q.A. cot.

1шт.

471210R1

PIN

sprocket

1шт.

2

PO2754

DRIVE SPROCKET

SPROCKET, 9-teeth

1шт.

2

PO2639BX

SPROCKET ASSY.

SPROCKET, 12-teeth

1шт.

21228R1

SCREW, 7/16-14 x 3/4 C-Z sq-hd cup, pt set

1шт.

2

515502R21

SPROCKET ASSY.

SPROCKET ASSY, 14-teeth

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

3

CHAIN, drive use 14 No. 32 steel links from a 10-ft roll marked CS-32

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

471246R91

NO LONGER SERVICED

WHEEL ASSY, 8 x 20 in. dia.

1шт.

PO19374

RIVET, 3/8 x 25/32 special-hd

12шт.

6

468490R91

ARM ASSEMBLY, scraper

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

622850R1

SCRAPER, for 8 x 20 in. press wheel

1шт.

7

13504AB

SCRAPER, FOR 6-1/2 x 20 in. press wheel

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
