Запчасти Case IH 86 (V-13) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER

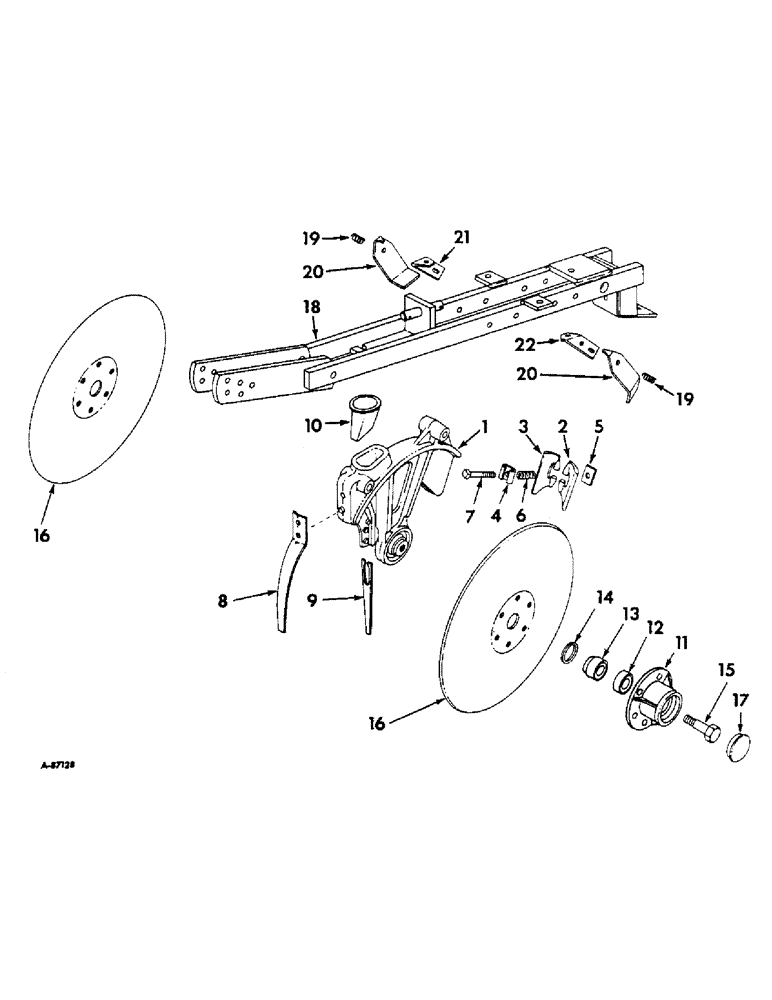

Схема запчастей Case IH 86 - (V-13) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER
15
1
13
17
18
19
5
21
9
11
20
2
12
7
4
16
10
16
19
22
8
6
20
3
14

Артикул

Название

Примечание

Количество

1

484083R1

BOOT

double disk opener

2шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

N2567

LARGE PLATE

SCRAPER, inside LH

2шт.

3

N2568

SCRAPER

inside RH

2шт.

4

N62537

HINGE

inside scraper

2шт.

5

N62538

KNIFE ASSY

SPREADER, inside scraper

2шт.

6

N62536

VALVE SPRING

SPRING, inside scraper

2шт.

7

620723R1

BOLT

5/16-24 x 2-1/2 sq-hd mach, inside, Serial Range: scraper-boot

2шт.

274312

SHAFT

NUT, 5/16-24 cd-pltd self-locking hex.

2шт.

8

522305R1

GUARD

weed

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

522306R1

DEFLECTOR

seed

2шт.

10

491000R1

TUBE

SPOUT, hooper bracket, replaces 468448R1

1шт.

11

524053R1

HUB

HOUSING, brg

4шт.

12

ST262

BALL BEARING,17mm ID x 40mm OD x 12mm W

BEARING, disk inner ball

4шт.

13

ST620

BALL BEARING,17 mm ID x 40 mm OD x 18.2549 mm

BEARING, disk outer ball

4шт.

14

524061R1

SPACER

brg

4шт.

15

524039R1

BOLT,Hex, 5/8" - 11 x 2", LH Thd

spindle LH thread

2шт.

131045

LOCK WASHER

WASHER, 11/16 C-Z med lock

2шт.

15

524040R1

BOLT,5/8" - 11 x 2", RH Thd

spindle RH thread

2шт.

131045

LOCK WASHER

WASHER, 11/16 C-Z med lock

2шт.

16

523951R1

DISC

BLADE, disk, 13-7/8 in.

4шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 rd-hd

24шт.

17

522021R1

CAP

brg

4шт.

18

484087R91

FRAME ASSY, planter

4шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga. plain

8шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

8шт.

17650R1

BOLT, 1/2 x 3-1/4 hex-hd mach

4шт.

19278R1

BOLT, 1/2-13 x 4-3/4 cd-zn-pltd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

102637

NUT,1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

6633

SPRING

outside scraper

4шт.

20

464475R1

SUPPORT

SCRAPER, outside

4шт.

17495R1

BOLT, 5/16 x 1-3/4 hex-hd mach

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

8шт.

18252R1

NUT,5/16"-18, GB

5/16-18 ESNA stop

4шт.

21

484093R1

BRACE

scraper RH

2шт.

22

484092R1

SUPPORT

BRACE, scraper LH

2шт.

Выбрано товаров: 43
