Запчасти Case IH 86 (V-12) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW

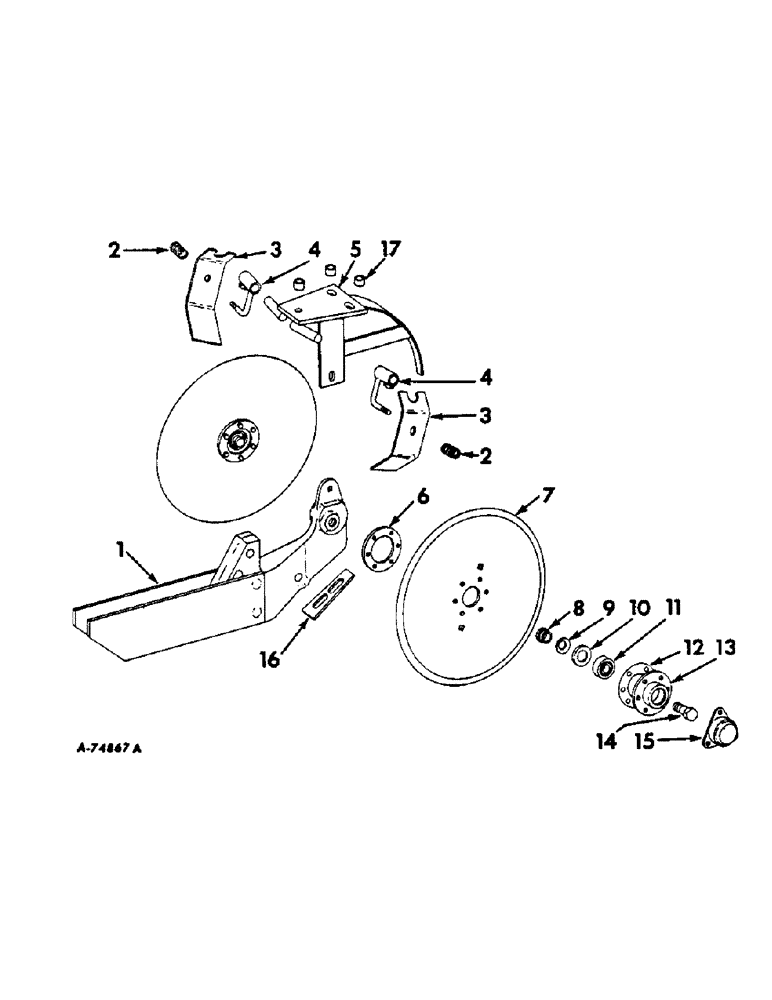

Схема запчастей Case IH 86 - (V-12) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW
6
15
9
10
16
11
5
2
3
7
1
14
12
4
8
13
4
3
2
17

Артикул

Название

Примечание

Количество

1

474341R91

OPENER

RUNNER ASSY, double disk

1шт.

20156R1

RIVET, 3/8 x 2-5/16, 74 deg csk-hd

2шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2-13 x 2-1/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

WASHER, 1/2 med lock

1шт.

2

6633

SPRING

2шт.

3

471240R1

SUPPORT

SCRAPER, disk

2шт.

4

474344R91

SPACER

ASSY, scraper

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

102894

SET SCREW

3/8-16 x 3/4 sq-hd cup-pt set

2шт.

5

471220R91

SHIELD ASSY, double disk opener

1шт.

13254R1

BOLT, 5/16 x 1 sq-hd mach

1шт.

456276R1

NUT

5/16-18 hex. lock

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

6

464480R1

WASHER

WASHER, reinforcement

2шт.

7

471235R1

DISC

DISK, opener

2шт.

8

602988R1

SPACER

seal retainer

2шт.

9

464628R1

SEAL

2шт.

10

602994R1

FLANGE

corrosion prevention

2шт.

11

602996R91

BEARING

ball

2шт.

12

602992R1

GASKET

disk

2шт.

13

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z pltd hex-hd cap

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, bearing disk LH thread

1шт.

14

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, bearing disk RH thread

1шт.

15

464483R1

CYLINDER END CAP

CAP, disk bearing

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z pltd hex-hd cap

6шт.

16

478203R1

BAR

SCRAPER, inside

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16 x 3/4 hex-hd mach

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

17

SA2172

SPACER,3/8" Pipe x 1/2"

3шт.

17497R1

BOLT, 7/16-14 x 1-3/4 hex-hd mach

1шт.

15055R1

BOLT, 7/16-14 x 1-3/4 sq-nk crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

NLS

NO LONGER SERVICED

7/16 hex.

3шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.
