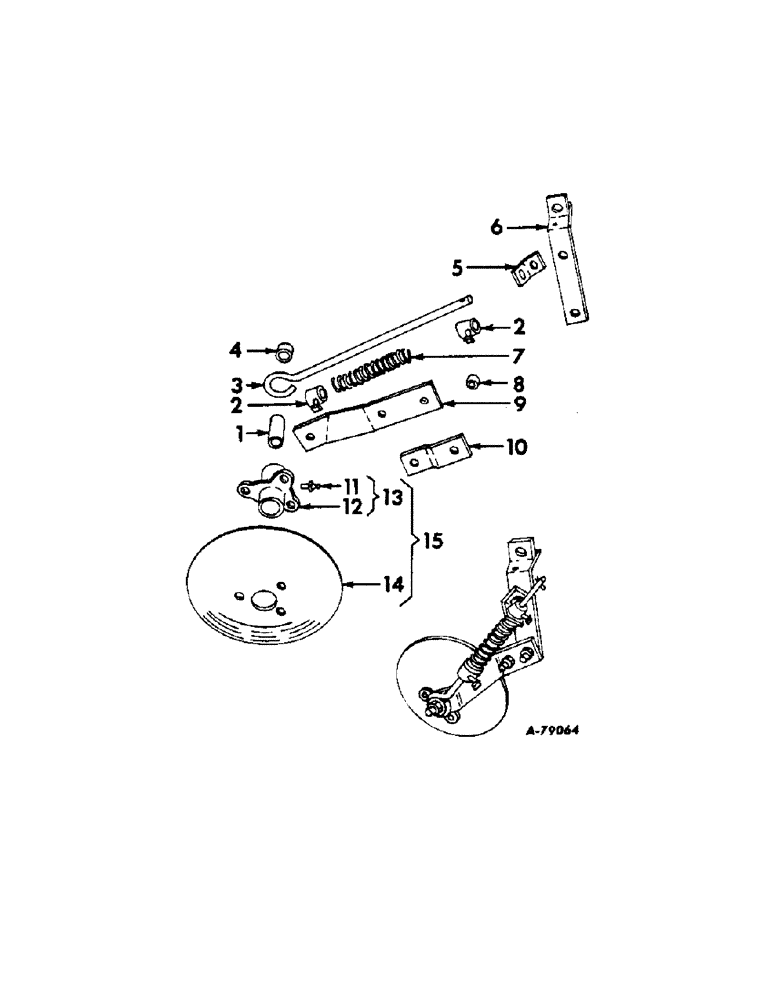

Запчасти Case IH 86 (V-10[A]) - DISK COVERING ATTACHMENT, ONE PER ROW

1

517958R2

BUSHING

hub

2шт.

2

517951R11

WEAR PAD

COLLAR ASSY, pressure rod set

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt sht

4шт.

3

520473R1

ROD, pressure

2шт.

510579R1

WASHER

13/32 x 1-1/4 x 11 ga

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

4

22586N

SPACER,3/8" Pipe x 9/16"

BUSHING, pressure rod

2шт.

5

515868R1

BRACE, pressure rod

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

6

477044R21

BRACKET ASSY, pivot

2шт.

17894R1

BOLT, 1/2-13 x 6-1/4 hex-hd mach

1шт.

7

PO104

VALVE SPRING

SPRING, pressure rod

2шт.

8

526713R1

BUSHING, pivot bracket

2шт.

9

526717R1

ARM, disk cover LH

1шт.

9

526718R1

ARM, disk cover RH

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16-18 x 3/4 hex-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

10

526709R1

STRAP, hammer

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

2шт.

12

517948R21

DISC

HUB ASSY, disk cover

1шт.

17649R1

BOLT, 7/16-14 x 3-1/4 hex-hd mach

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 MF hex. lock

2шт.

13

517948R21

DISC

HUB W/FITTING, disk cover

1шт.

14

DISK COVERING, order 623128R12

1шт.

102682

RIVET, 3/16 x 11/16 rd-hd

6шт.

15

623128R12

DISC

DISK AND HUB ASSY

2шт.
