Запчасти Case IH 66-SERIES (U-69) - SPRING TOOTH HARROW ATTACHMENT, FOR 4 ROW PLANTERS, 1967 AND SINCE

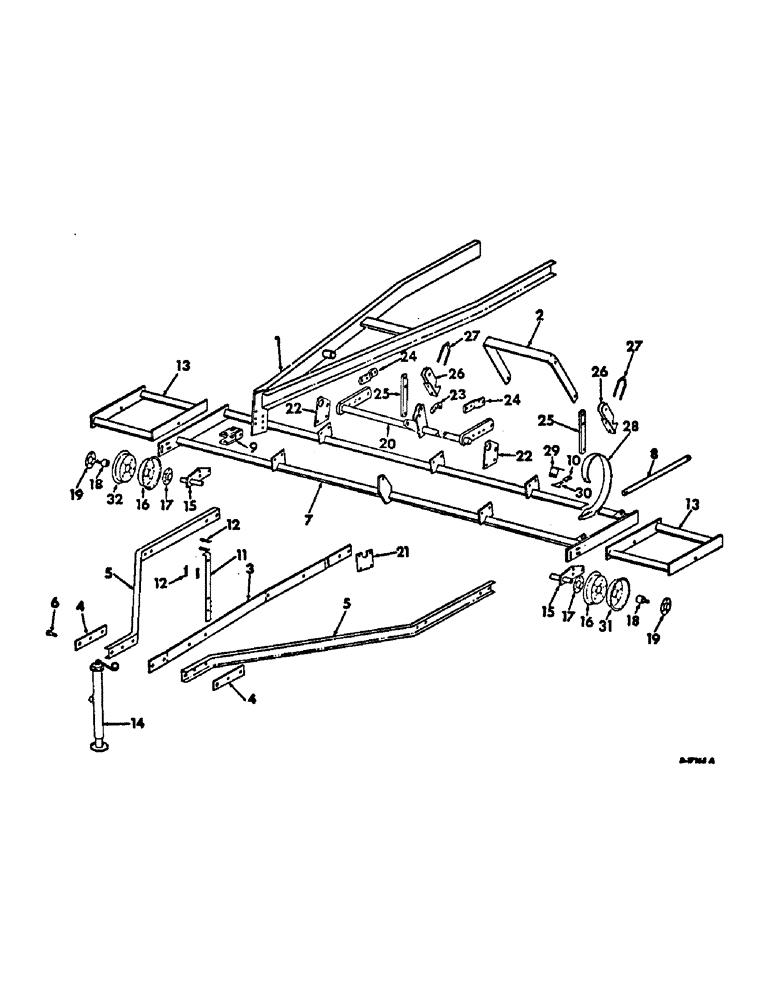

Схема запчастей Case IH 66-SERIES - (U-69) - SPRING TOOTH HARROW ATTACHMENT, FOR 4 ROW PLANTERS, 1967 AND SINCE
4
24
17
29
19
16
31
16
3
21
5
27
32
22
4
1
18
26
7
13
20
10
25
30
25
9
13
23
12
24
5
15
19
15
26
27
12
11
2
17
6
28
18
14
22

Артикул

Название

Примечание

Количество

1

489554R1

HITCH ASSY, planter

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

2

489559R1

SUPPORT, planter frame rail spreader

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

3

489560R2

SUPPORT, drawbar center rail

1шт.

4

489561R1

BAR, harrow drawbar pivot strap

2шт.

5

489562R1

CHANNEL, harrow drawbar rail

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

6шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

14шт.

6

489563R1

PIN, harrow drawbar

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

7

489564R1

BAR ASSY, tooth

1шт.

8

489570R1

ROD, tooth bar hinge

2шт.

18375R1

WASHER, 25/32 x 1-1/4 x 16 ga C-Z

4шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self opening cot.

4шт.

9

489571R1

CLEVIS ASSY

1шт.

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 C-Z std-hd

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

10

489574R1

BAR, tooth angle

6шт.

11

489575R2

SUPPORT, hose

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 C-Z wing

2шт.

12

515030R1

CLAMP

hose

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

13

489594R1

BAR ASSY, tooth outer, short RH

1шт.

13

489593R1

BAR ASSY, tooth outer, short LH

1шт.

14

60353C1

JACK ASSY

1шт.

15

489576R1

ARM ASSY, gauge wheel

2шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8 x 7/16 C-Z hex-soc-hd ov-pt set

4шт.

18732R1

BOLT

3/4-10 x 2-1/4 C-Z sq-nk crg

4шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

16

465233R1

WHEEL

DISK LESS VALVE HOLE, wheel

2шт.

17

465235R1

RETAINER

HOUSING, brg open half

2шт.

18

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

2шт.

19

465236R1

COVER

HOUSING, brg closed half

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

10шт.

465466R1

WASHER, 3/8 ext-tooth lock

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

20

489579R1

ROCKSHAFT ASSY

1шт.

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN, 5/8 x 1-13/16 C-Z std-hd

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

22066R1

PIN, 3/4 x 1-9/16 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21

489584R1

SUPPORT

1шт.

22

489585R1

BAR, brg

2шт.

23

489586R1

BEARING, rockshaft

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

66584D

FITTING

3/16 drive type str lub

3шт.

24

489587R1

SUPPORT, strap

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

25

489588R1

BAR

2шт.

22104R1

PIN, 3/4 x 2-7/8 C-Z std-hd

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

26

489589R1

SUPPORT ASSY, bracket

2шт.

472396R1

BOLT,Hex, 3/4" - 10 x 2.24"

3/4-10 x 2-1/4 hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

27

479885R1

U-BOLT, support bracket

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

28

470963R2

SPRING

TOOTH, spring

27шт.

29

484623R1

ANGLE

tooth clamp

27шт.

30

484625R1

STRAP

tooth locator

27шт.

180161

SCREW, 7/16-14 x 3-1/4 C-Z hex-hd cap

21шт.

180162

SCREW,Hex, 7/16" - 14 x 3 1/2", Gr 5

7/16-14 x 3-1/2 C-Z hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

27шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

27шт.

31

465234R1

WHEEL

DISK W/VALVE HOSE, wheel

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

Выбрано товаров: 87
