Запчасти Case IH 66-SERIES (U-62) - PEANUT PLANTING EQUIPMENT, ONE PER ROW, 1967 AND SINCE

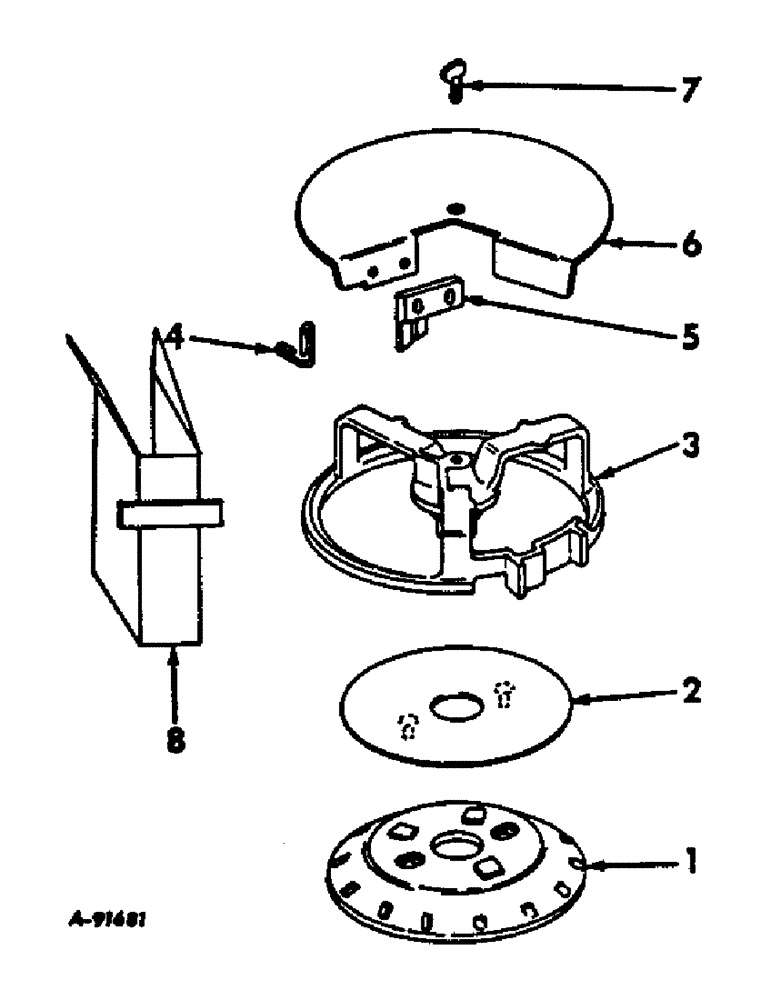

Схема запчастей Case IH 66-SERIES - (U-62) - PEANUT PLANTING EQUIPMENT, ONE PER ROW, 1967 AND SINCE
3
7
8
5
4
2
6
1

Артикул

Название

Примечание

Количество

1

487067R2

LARGE PLATE

PLATE, peanut seed

1шт.

2

487068R1

PLATE

ASSY, peanut baffle

1шт.

3

487063R1

BOTTOM

peanut hopper

1шт.

4

487070R1

SPRING

peanut cut-off

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

8-32 x 5/16 C-Z slt-pan-hd mach

1шт.

5

487066R1

REINFORCEMENT

peanut cut-off

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

8-32 x 5/16 slt-pan-hd mach

2шт.

6

487064R2

BAFFLE

ASSY, peanut

1шт.

7

377363R1

THUMB SCREW,1/4" x 3/4"

thumb

1шт.

8

488279R1

DEFLECTOR ASSY, seed, 1967 and since

1шт.

Выбрано товаров: 10
