Запчасти Case IH 66-SERIES (U-61[A]) - PEANUT PLANTING EQUIPMENT, ONE PER ROW, 1966

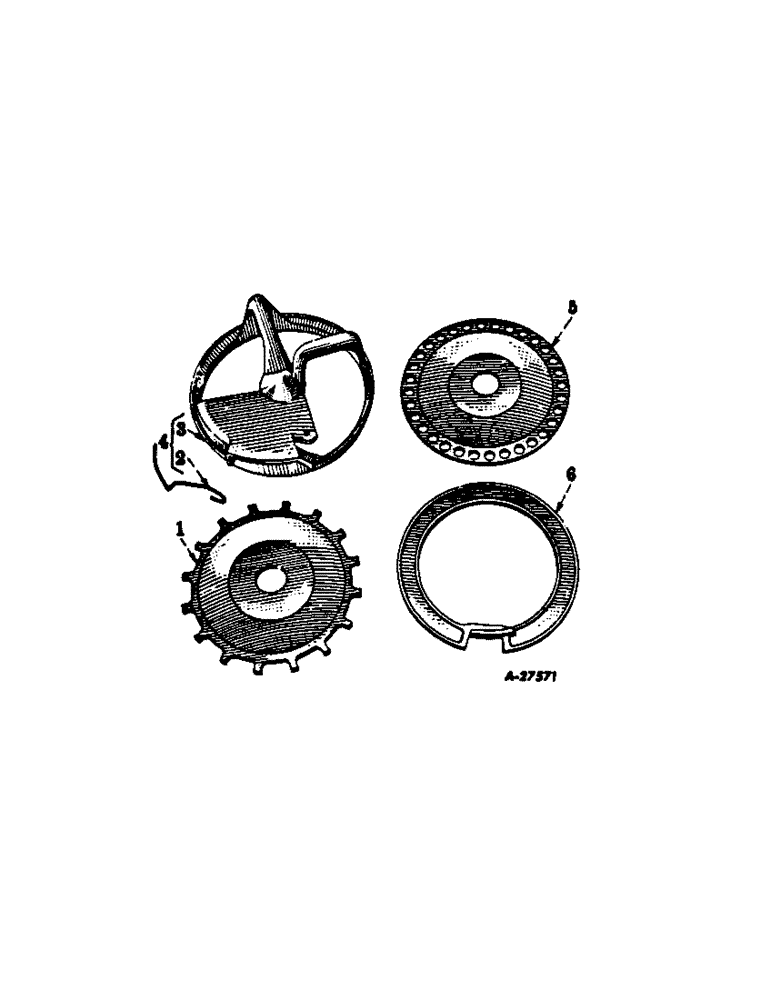

Схема запчастей Case IH 66-SERIES - (U-61[A]) - PEANUT PLANTING EQUIPMENT, ONE PER ROW, 1966
3
4
6
1
5
2

Артикул

Название

Примечание

Количество

1

621731R2

PLATE, seed, 16 cells, for peanuts in shell

1шт.

2

621734R2

SPRING, cut-off

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-rd-hd mach

1шт.

114380

NUT

1/4-20 sq mach screw

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

2шт.

3

BOTTOM, peanut, order 622187R91

1шт.

4

622187R92

BOTTOM COMPLETE, peanut

1шт.

5

621732R2

PLATE, seed, 32 cells, for shelled peanuts

1шт.

6

621733R2

RING, filler, used w/621733R2 seed plate

1шт.

Выбрано товаров: 9
