Запчасти Case IH 66-SERIES (U-56) - HYDRAULIC MARKER ALTERNATOR AND CONNECTIONS, FOR 12 ROW MARKER

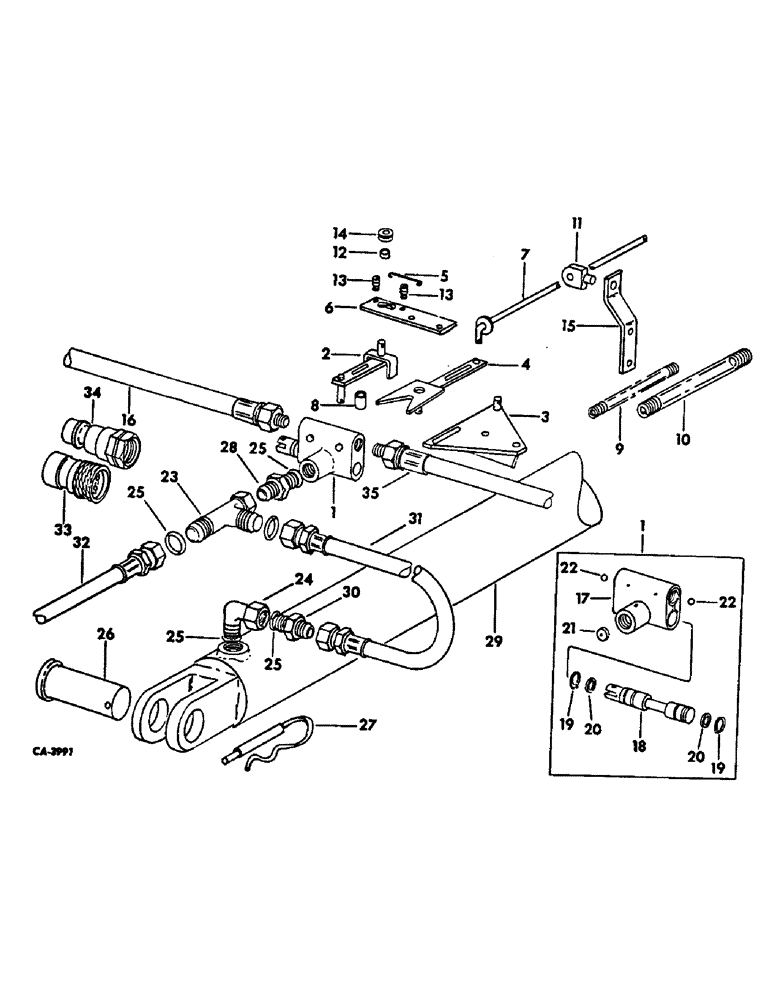

Схема запчастей Case IH 66-SERIES - (U-56) - HYDRAULIC MARKER ALTERNATOR AND CONNECTIONS, FOR 12 ROW MARKER
1
20
4
33
7
32
34
1
28
10
17
3
31
13
13
29
25
24
27
5
19
23
16
19
25
15
9
26
12
35
11
25
21
18
14
25
22
6
2
30
8
20
22

Артикул

Название

Примечание

Количество

1

546861R92

VALVE

ASSY, selector

1шт.

2

546854R1

ARM

ASSY, rocker

1шт.

22922R1

LOCK PIN,1/4" x 3/4", Slotted

Pin, 1/4" x 3/4", Slotted

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

3

548081R1

PLATE ASSY

1шт.

4

546856R2

ARM

ASSY

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

5

546851R1

SPRING

1шт.

6

546857R1

SUPPORT

bellcrank

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

548082R1

ROD ASSY, alternator

1шт.

50793H

WASHER

13/32 x 7/8 x 11 ga

2шт.

21819R1

PIN, 3/16 x 3/4 C-Z self-opening cot

2шт.

8

546847R1

ROLLER

1шт.

9

546836R1

SPRING

override

1шт.

10

546835R3

SPRING

PIVOT, trunnion

1шт.

11

548084R1

PIVOT

trunnion

1шт.

12

546839R1

BUSHING

1шт.

13

546846R1

STUD

2шт.

14

546850R1

PULLEY

ROLLER

1шт.

15

547706R1

ARM, valve actuator

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

2шт.

16

461166R91

HOSE ASSY.

HOSE, 100 in. RH, 8 row

2шт.

16

372437R91

HOSE

112 in. RH, 12 row

2шт.

17

VALVE, selector, not serviced seperately order valve assy 546861R92

1шт.

18

SPOOL, selector valve, not serviced seperately order valve assy 546861R92

1шт.

19

549242R1

RING

retaining

2шт.

20

403519R1

O-RING,13.94mm ID x 2.62mm Width

QUAD RING

2шт.

21

546844R1

WASHER

restrictor

1шт.

22

663033R1

BALL

9/16 dia.

2шт.

23

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 hyd 37 deg flared tube str thrd 90 deg swivel

1шт.

24

371357R91

ELBOW

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

9шт.

26

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd

4шт.

27

520175R1

CLIP

PIN, 3/16 x 1-1/8 QA cot

4шт.

28

493792R1

UNION

RESTRICTOR

1шт.

29

547993R92

CYLINDER, 2 x 8 SA

2шт.

30

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

1шт.

31

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

18-1/4 in.

1шт.

32

491957R1

HOSE, 95 in.

1шт.

33

395150R91

COUPLING, QUICK, FEM

COUPLING, female quick-attachable

1шт.

34

395149R1

QUICK MALE COUPLING

COUPLING, male quick-attachable

1шт.

35

653348R91

FLEXIBLE HOSE

HOSE, 155 in. LH, 8 row

1шт.

35

463076R91

HOSE, 180 in. LH, 12 row

1шт.

Выбрано товаров: 53
