Запчасти Case IH 66-SERIES (U-50) - ROTARY HOE STRIP TILLAGE ATTACHMENT, FOR 2 AND 4-ROW PLANTERS, ONE PER ROW

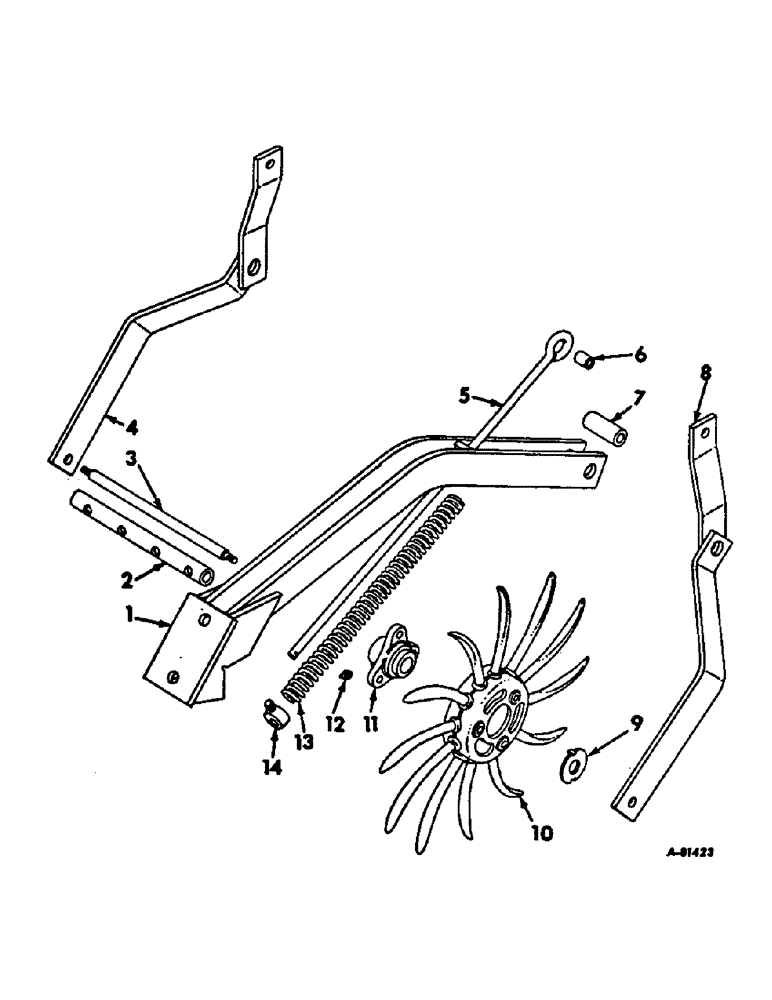

Схема запчастей Case IH 66-SERIES - (U-50) - ROTARY HOE STRIP TILLAGE ATTACHMENT, FOR 2 AND 4-ROW PLANTERS, ONE PER ROW
9
7
10
11
6
2
14
1
5
13
4
8
12
3

Артикул

Название

Примечание

Количество

1

480408R91

FRAME ASSY, main

2шт.

17927R1

BOLT,Hex, 5/8" - 11 x 7", Gr 2

5/8-11 x 7 hex-hd mach

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

517706R1

SLEEVE, bearing

2шт.

Q216

WASHER

1-3/32 x 1-3/4 x 16 ga

6шт.

3

516442R1

SHAFT, weeder wheel

2шт.

102637

NUT,1/2"-13, G5

4шт.

552356R1

WASHER

25/32 x 2-1/4 x 11 ga

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

480413R91

ARM ASSY, wheel left

2шт.

5

480418R1

ROD, lift

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

6

516560R1

BUSHING, spacer

2шт.

17523R1

BOLT, 1/2-13 x 2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

480417R1

SPACER, frame pivot

2шт.

17815R1

BOLT, 5/8-11 x 5 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

480414R91

ARM ASSY, wheel right

2шт.

9

516447R1

WASHER, wheel hub wear

4шт.

10

522294R11

WHEEL ASSY, rotary, 12T

8шт.

11

522293R1

HUB, wheel

8шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex-hd mach

24шт.

102635

NUT,3/8"-16, G5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Wheel hub 1/8"-27 x .66 lg

8шт.

13

R15254

SPRING, pressure

2шт.

14

516595R1

COLLAR

set

4шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

4шт.

Выбрано товаров: 32
