Запчасти Case IH 66-SERIES (U-48) - SEED FIRMING WHEEL ATTACHMENT, ONE PER ROW

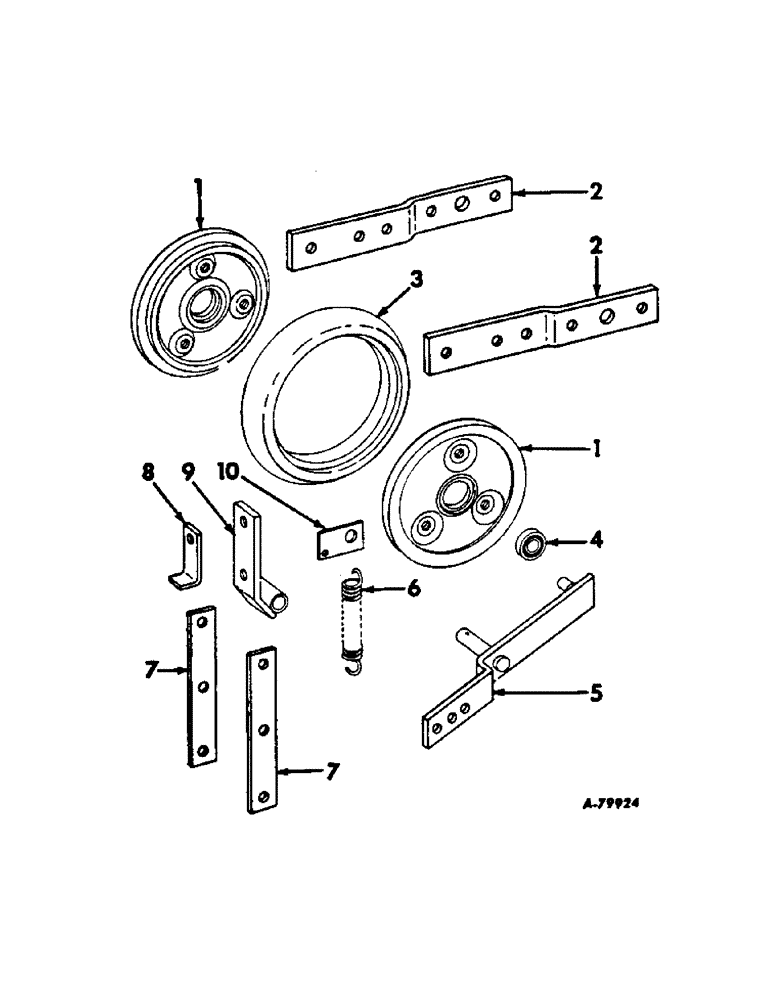

Схема запчастей Case IH 66-SERIES - (U-48) - SEED FIRMING WHEEL ATTACHMENT, ONE PER ROW
7
1
8
3
2
1
9
4
10
6
5
2
7

Артикул

Название

Примечание

Количество

1

527151R1

PLATE

WHEEL, seed firming disc

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 1 C-Z hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

2

473576R1

EXTENSION, pressure wheel

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

527227R1

TYRE/TIRE

TIRE, 7 x 1 semi-pneumatic

1шт.

4

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

1шт.

5

471214R91

BRACKET

PIVOT ASSY, wheel

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 C-Z hex-hd mach

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

1шт.

21634R1

PIN, 1/4 x 1 C-Z self-opening cot

1шт.

20380

BUSHING

WASHER, 1/4 C-Z med lock

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

1шт.

446354

WASHER,1/4"

5/16 x 7/8 x 16 ga C-Z

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

1шт.

6

207199R1

SPRING

extension

1шт.

7

473575R1

STRIP

firming wheel mounting, drill

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

8

477834R1

STOP, firming wheel, drill

1шт.

9

471218R11

SUPPORT

ASSY, wheel pivot, hill drop

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

471217R1

CLIP

spring

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Hill drop 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Hill drop 1/2"

1шт.

Выбрано товаров: 30
