Запчасти Case IH 66-SERIES (U-47) - ADJUSTABLE WHEEL FRAME, FOR 4-ROW PLANTERS

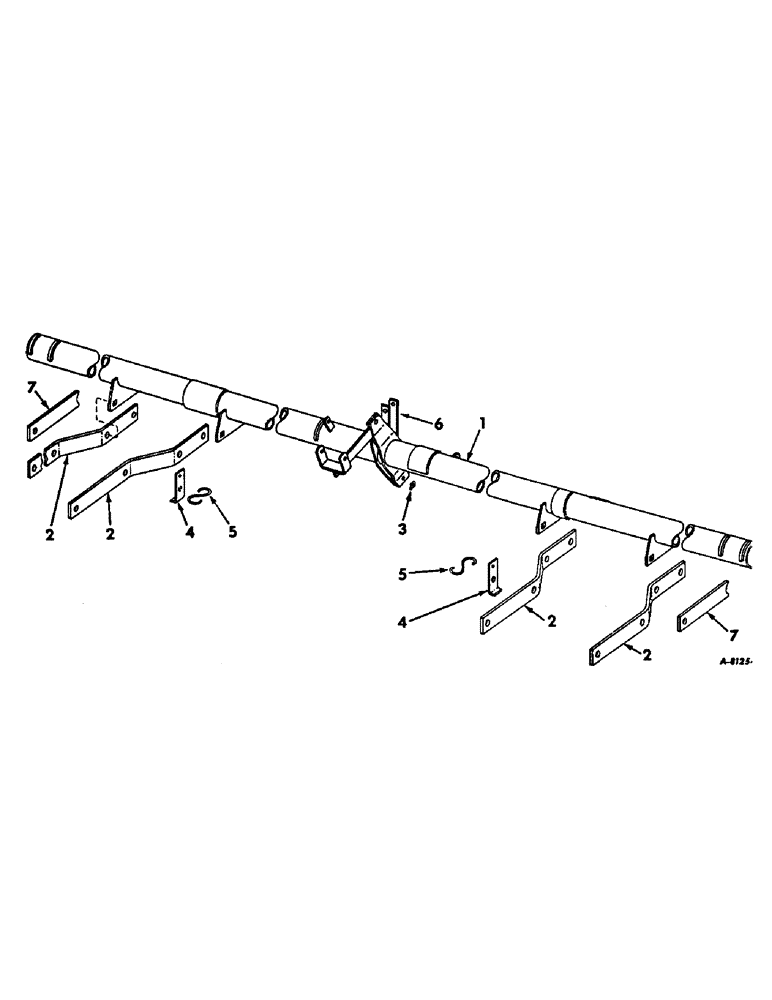

Схема запчастей Case IH 66-SERIES - (U-47) - ADJUSTABLE WHEEL FRAME, FOR 4-ROW PLANTERS
4
2
2
2
4
1
5
3
7
6
2
5
7

Артикул

Название

Примечание

Количество

1

479143R93

FRAME ASSY, adjustable wheel, 28 to 40 in. row spacing

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

2

479138R1

BRACKET, wheel arm

4шт.

15058R1

BOLT, 5/8 x 1-3/4 crg-hd

8шт.

102639

NUT,5/8"-11, G5

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

4

473562R1

ANCHOR, spring

2шт.

5

474374R1

HOOK

S-HOOK

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

472275R1

BEARING

cylinder bracket

1шт.

7

481819R1

BAR, wheel rail brace

2шт.

102639

NUT,5/8"-11, G5

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 17
