Запчасти Case IH 66-SERIES (U-43[A]) - DISK FURROWING ATTACHMENT W/12 IN. DISK, FOR 2 AND 4-ROW PLANTERS, ONE PER ROW

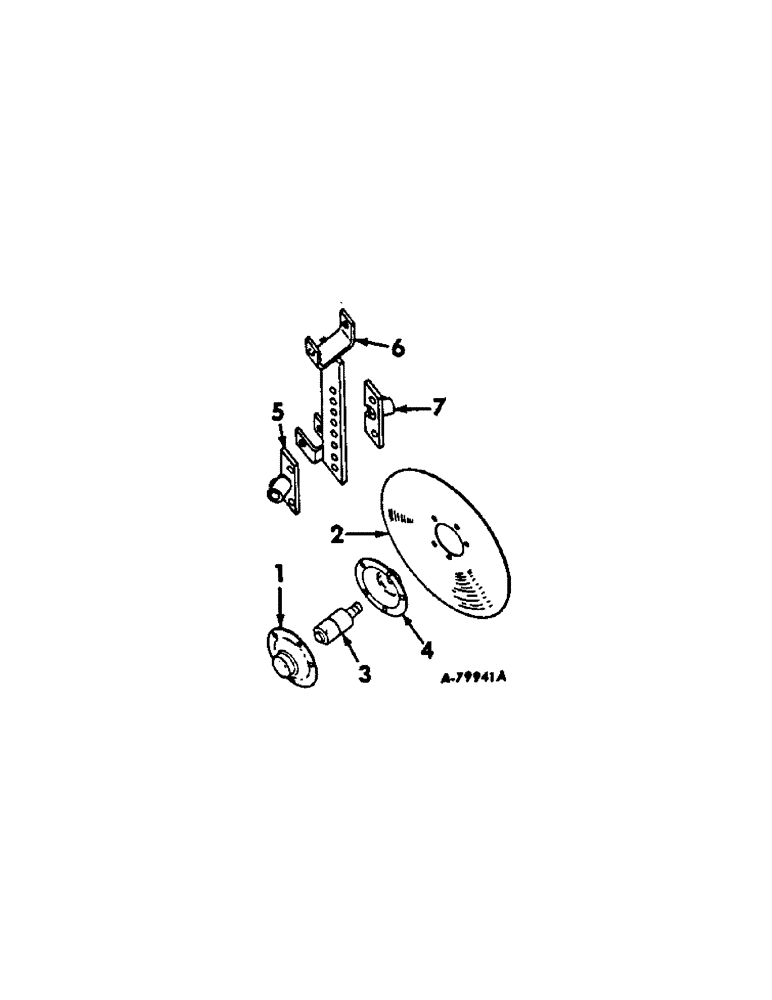

Схема запчастей Case IH 66-SERIES - (U-43[A]) - DISK FURROWING ATTACHMENT W/12 IN. DISK, FOR 2 AND 4-ROW PLANTERS, ONE PER ROW
1
2
3
6
7
4
5

Артикул

Название

Примечание

Количество

1

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

brg outer

2шт.

2

479848R1

DISC

DISK, 12 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

3

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSY, disk

2шт.

4

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, brg inner

2шт.

5

472249R91

MOUNTING ASSY, disk RH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

480672R91

BRACKET ASSY, disk mounting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 C-Z hex-hd cap

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

472248R91

MOUNTING ASSY, disk LH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 22
