Запчасти Case IH 66-SERIES (U-39) - DUAL MARKER ATTACHMENT, FOR 4-ROW PLANTERS, 1966

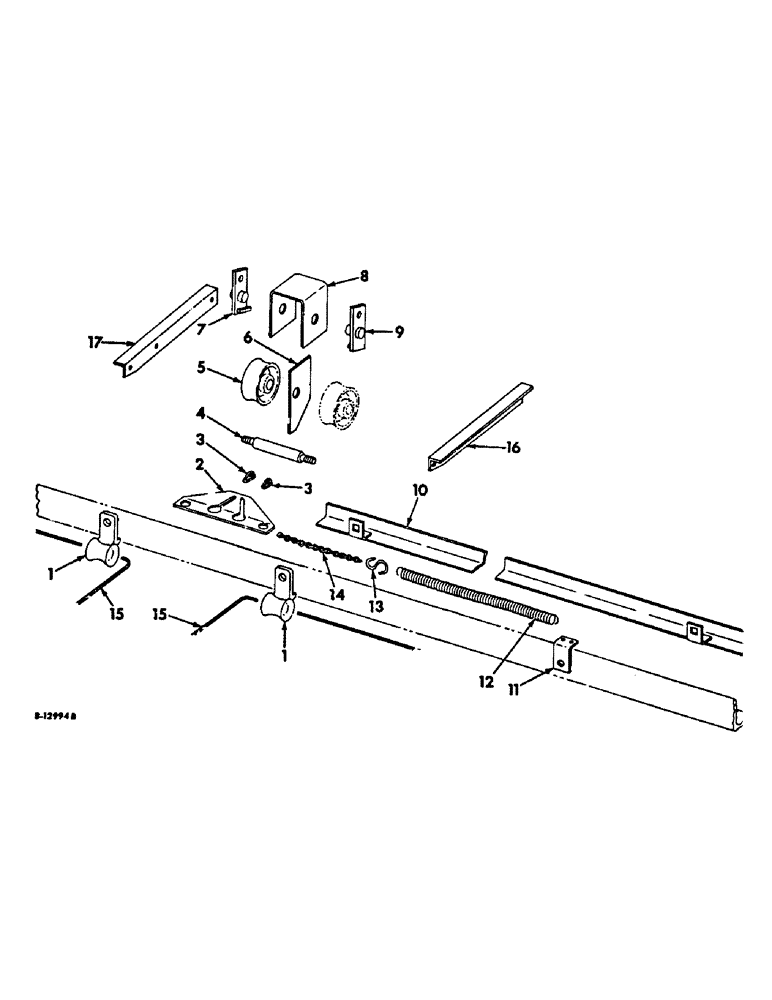

Схема запчастей Case IH 66-SERIES - (U-39) - DUAL MARKER ATTACHMENT, FOR 4-ROW PLANTERS, 1966
3
1
13
1
3
7
10
9
14
11
6
8
4
5
15
2
16
12
17
15

Артикул

Название

Примечание

Количество

1

626031R1

GUIDE, marker chain

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

477092R1

BRACKET, chain

1шт.

Q1176

HEADED PIN,5/8" x 2 3/16"

PIN, 5/8 x 2-3/16 std-hd

2шт.

3

50425H

LINK, chain repair

2шт.

4

477088R1

PIVOT, pulley

1шт.

5

625071R1

PULLEY

ROLLER, lift chain

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

6

477090R1

STRIP, pulley clevis

1шт.

7

477084R91

MOUNTING ASSY, pulley clevis RH

1шт.

8

477089R1

CLEVIS, pulley

1шт.

9

477083R91

MOUNTING ASSY, pulley clevis LH

1шт.

10

477102R91

GUIDE ASSY, chain

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

477094R1

ANGLE, spring anchor

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

477093R1

SPRING, marker

2шт.

13

512749R1

HOOK

S-HOOK, rope

2шт.

14

477091R1

CHAIN (AG)

CHAIN, lift

1шт.

15

ROPE, marker, 30 ft. 3/16 in. dia., purchase locally

1шт.

16

480608R1

ANGLE, marker arm LH brace

1шт.

17

480609R1

ANGLE, marker arm RH brace

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

6шт.

Выбрано товаров: 34
