Запчасти Case IH 66-SERIES (U-37) - EIGHT-ROW HYDRAULIC MARKER ATTACHMENT, FOR 4-ROW PLANTERS, 1971 AND SINCE

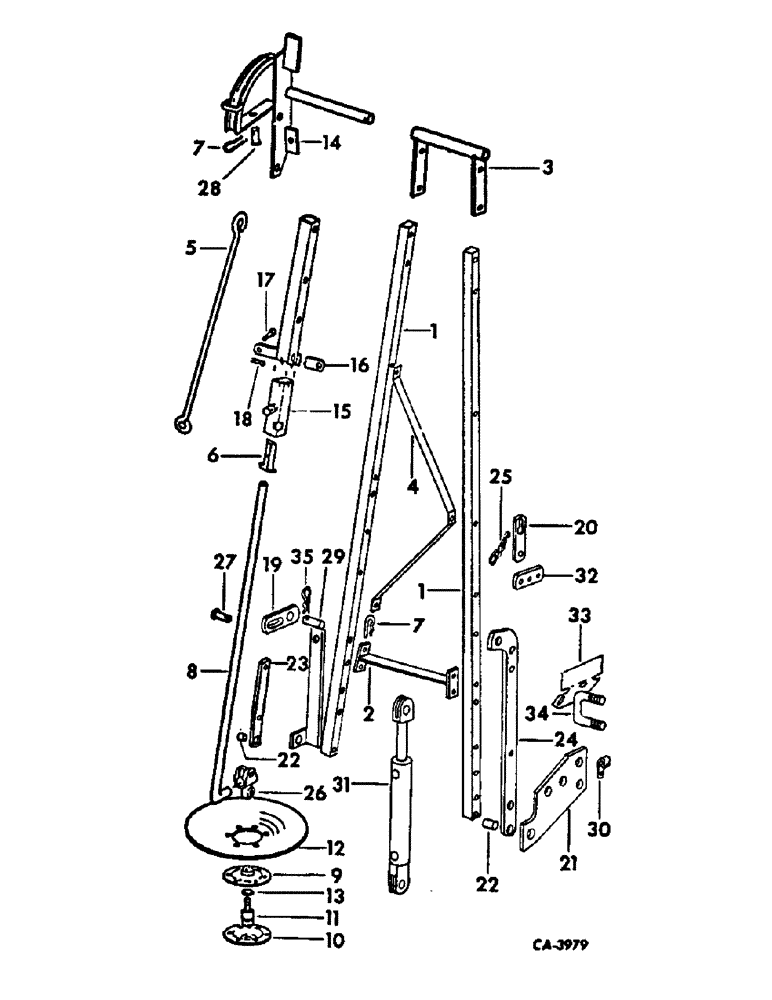

Схема запчастей Case IH 66-SERIES - (U-37) - EIGHT-ROW HYDRAULIC MARKER ATTACHMENT, FOR 4-ROW PLANTERS, 1971 AND SINCE
15
11
4
18
21
32
8
7
13
28
16
17
1
27
12
22
19
34
10
26
31
25
9
7
20
35
29
23
3
2
24
5
14
1
30
33
22
6

Артикул

Название

Примечание

Количество

1

489754R3

TUBE

marker, 8 row

4шт.

1

489771R3

TUBE, marker, 12 row

4шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

493946R1

BRACKET

ASSY, tube

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

6шт.

3

489758R1

TUBE

PIPE ASSY

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd sq-nk crg

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

489761R1

SUPPORT

BRACE

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

6шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

5

489768R1

ROD

marker brace, 8 row

2шт.

5

489763R1

ROD, marker brace, 12 row

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

489764R1

BLOCK

2шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 znd sq-hd cup-pt set

2шт.

Q3808

PIN, 7/8 x 5 std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

7

520175R1

CLIP

PIN, quick-attachable cot

2шт.

8

478033R1

ROD

marker disk clamp

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

9

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk furrow brg inner

2шт.

10

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk furrow brg outer

1шт.

11

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

12

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

13

480679R1

WASHER

dirt seal felt

2шт.

14

489774R1

PULLEY

ASSY, LH

1шт.

14

489775R1

PULLEY

ASSY, RH

1шт.

20328

PIN, 1/4 x 1-1/2 C-Z cot

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

6шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

489784R1

TUBE ASSY, 8 row

1шт.

15

489786R1

TUBE

ASSY, 8 row

1шт.

15

489781R2

TUBE ASSY, LH, 12 row

1шт.

15

489783R1

TUBE ASSY, RH, 12 row

1шт.

16

489787R1

LINK

2шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

4шт.

17

586591R1

COTTER PIN

PIN, quick-attachable cot

4шт.

21628R1

PIN

1/8 x 3/4 C-z self-opeining cot

2шт.

18

547705R1

LINK TRANSPORT

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

465867R1

HEADED PIN,1/2" x 2 1/8"

PIN, 1/2 x 2-1/8 znd std-hd

2шт.

19

548076R1

LINK

ACTUATOR CHAIN

2шт.

22073R1

PIN, 1/2 x 7/8 znd std-hd 1/2" x 7/8"

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20

520175R1

CLIP

PIN, 3/16 quick-attachable cot

2шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

21

548065R1

ANCHOR ASSY, cyl LH

1шт.

21

548066R1

ANCHOR ASSY, cyl RH

1шт.

22

493982R1

BUSHING

marker pivot

4шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

23

58077R1

ARM, marker pivot

2шт.

24

548078R2

ARM

marker lift LH

1шт.

24

548079R2

ARM

marker lift RH

1шт.

19077R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 no. 3 repair, hd plow

2шт.

25

489767R92

CHAIN (AG)

CHAIN, marker

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 znd hex-hd mach

2шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

2шт.

480891R1

NUT

1/4-20 znp flange lock

2шт.

26

478032R1

CLAMP

axle

2шт.

27

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

PIN, 1/2 x 3-7/16 C-Z std-hd

2шт.

28

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

29

548070R1

STRAP ASSY, pivot LH

1шт.

29

548071R1

STRAP ASY, pivot RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

2шт.

30

493962R2

CLAMP, hose

8шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex

4шт.

31

547993R92

CYLINDER, 2 x 8 single action hyd, for list of servicable parts see hydraulic cylinder 2 x 8 single action

2шт.

32

548075R1

BRACKET, actuator link

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

2шт.

33

548080R1

SHIELD, miter gear

2шт.

34

548069R1

U-BOLT

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

35

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

Выбрано товаров: 108
