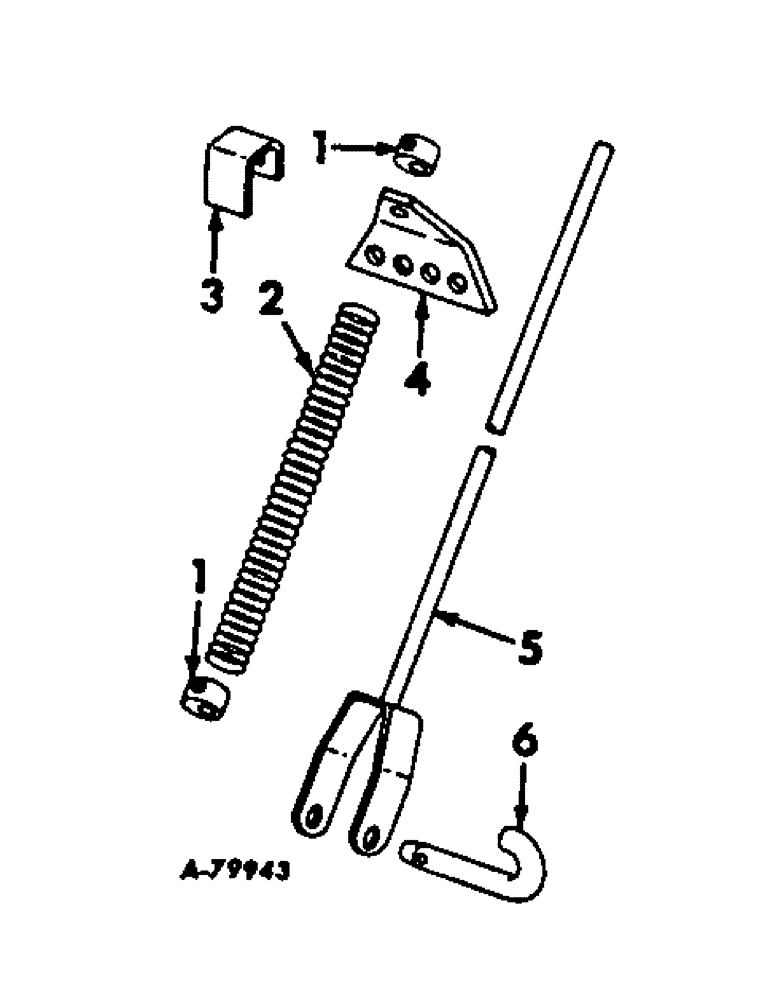

Запчасти Case IH 66-SERIES (U-25) - COMPLETING PACKAGE, LIFT RODS, ONE PER ROW

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, lift rod

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

2шт.

2

479178R1

VALVE SPRING

SPRING, pressure

1шт.

3

545298R1

CHANNEL, marker chain guide w/o fetilizer

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 and sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

472324R1

BRACKET, lift rod, w/o fertilizer

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

472325R11

ROD ASSY, lift, w/o fertilizer, 2 and 4 row planters, 6-row planters, 1966

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

2шт.

21942R1

HEADED PIN,1/2" x 3 3/4"

PIN, 1/2 x 3-3/4 C-Z std-hd

1шт.

5

489221R1

ROD ASSY, left, w/o fertilizer, 6-row planters, 1967 and since

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

1шт.

21942R1

HEADED PIN,1/2" x 3 3/4"

PIN, 1.2 x 3-3/4 C-Z std-hd

1шт.

5

472385R11

ROD

ASSY, lift, w/fertilizer

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

1шт.

6

472387R1

PIN, lift clevis, w/fertilizer

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.
