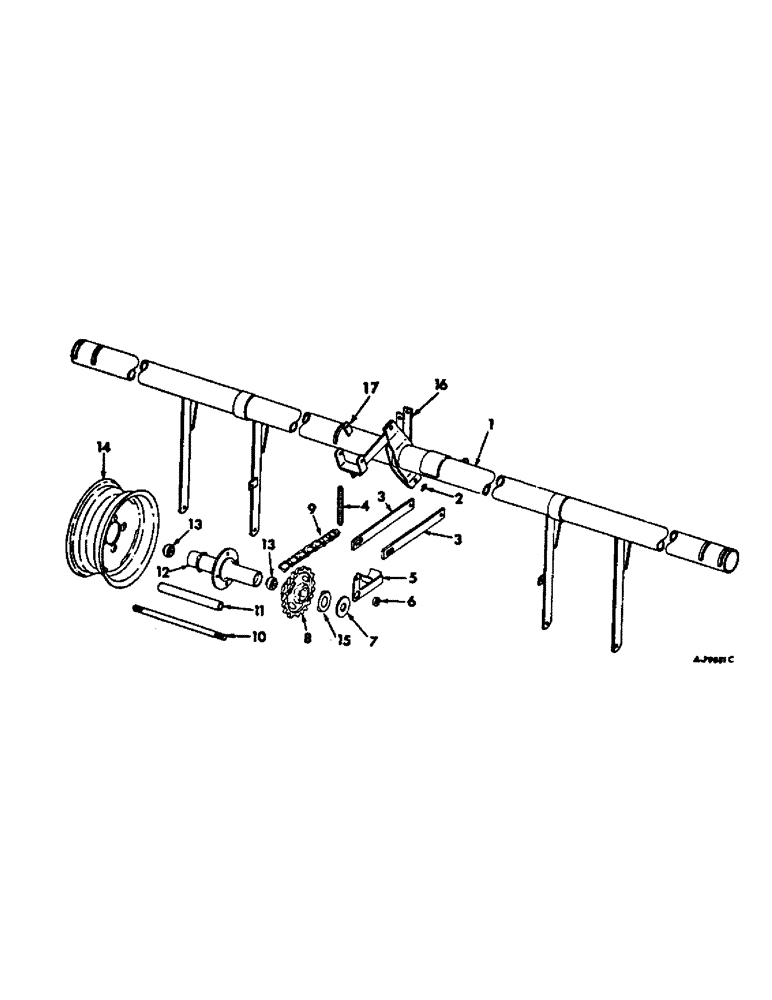

Запчасти Case IH 66-SERIES (U-17) - FRAME AND WHEEL, FOR 4-ROW PLANTERS

1

472264R93

FRAME ASSY, wheel, 34 to 40 inch row spacing

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

3

472299R1

LINK

transport

2шт.

21805R1

PIN

5/8 x 2-1/8 std-hd

2шт.

520175R1

CLIP

PIN, quick-attachable cot.

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

4

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

21633R1

PIN, 3/16 x 1-1/4, C-Z self-opening cot.

2шт.

5

490009R1

ARM

ASSY, drive chain tightener Lh

1шт.

5

490010R1

ARM

ASSY, drive chain tightener RH

1шт.

6

472297R1

WASHER

BUSHING, chain tightener

2шт.

7

472298R2

WASHER

retaining

2шт.

8

472279R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

2шт.

9

CHAIN, main wheel drive, use 55 links of 50H steel chain from 10 ft. roll marked, CS 50H

1шт.

10

472280R2

ROD

AXLE, wheel

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

4шт.

608701R1

WASHER

5/8 C-Z med lock

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

464435R2

SPACER

wheel axle

2шт.

12

472278R2

HUB CAP

HUB, wheel

2шт.

13

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

ASSY, wheel axle ball

4шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter drive, 14 x 5J, tire size 7.50 x 14 or 8.00 x 14

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

15

479136R1

WASHER

sprocket wear

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

16

472275R2

BRACKET

BEARING, cylinder bracket

1шт.

17

472269R1

ARM, clutch throwout, 1967 and since

1шт.
