Запчасти Case IH 66-SERIES (U-16) - FRAME AND WHEEL, FOR 2-ROW PLANTERS

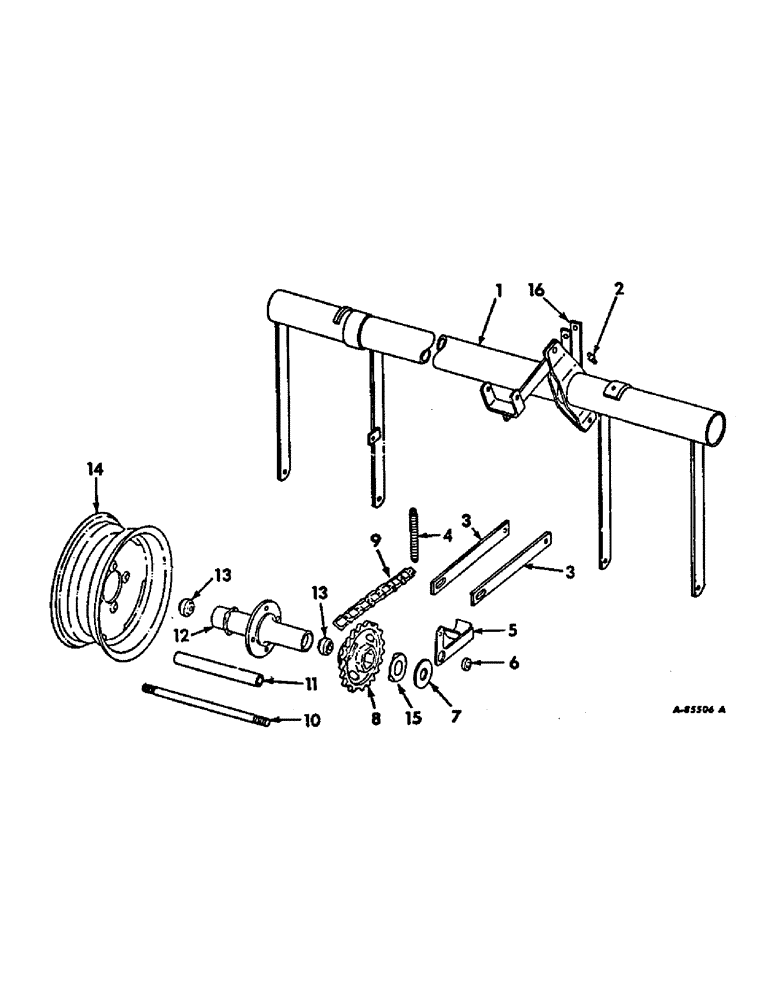

Схема запчастей Case IH 66-SERIES - (U-16) - FRAME AND WHEEL, FOR 2-ROW PLANTERS
6
13
7
8
5
4
16
9
13
10
1
2
14
12
3
3
15
11

Артикул

Название

Примечание

Количество

1

481906R92

FRAME ASSY, wheel, 28 to 40 in. row spacing

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 Nf str lub, clinder bracket arm

1шт.

3

472299R1

LINK

transport

2шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

520175R1

CLIP

PIN, quick-attachable cot.

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

4

2072A

VALVE SPRING

SPRING, chain tightener

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

1шт.

5

490009R1

ARM

ASSY, drive chain tightener LH

1шт.

6

472297R1

WASHER

BUSHING, chain tightener

1шт.

7

472298R2

WASHER

retaining

2шт.

8

472279R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

1шт.

9

CHAIN, main wheel drive use 55 links of 50H steel chain from 10 ft. roll marked, CS 50H

1шт.

10

472280R2

ROD

AXLE, wheel

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

464435R2

SPACER

wheel axle

2шт.

12

472278R2

HUB CAP

HUB, wheel

2шт.

13

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

ASSY, wheel axle ball

4шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter drive, 14 x 5J rim, for 7.50 x 14 or 8.00 x 14 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

15

479136R1

WASHER

sprocket wear

2шт.

16

472275R2

BRACKET

BEARING, cylinder bracket

1шт.

Выбрано товаров: 23
