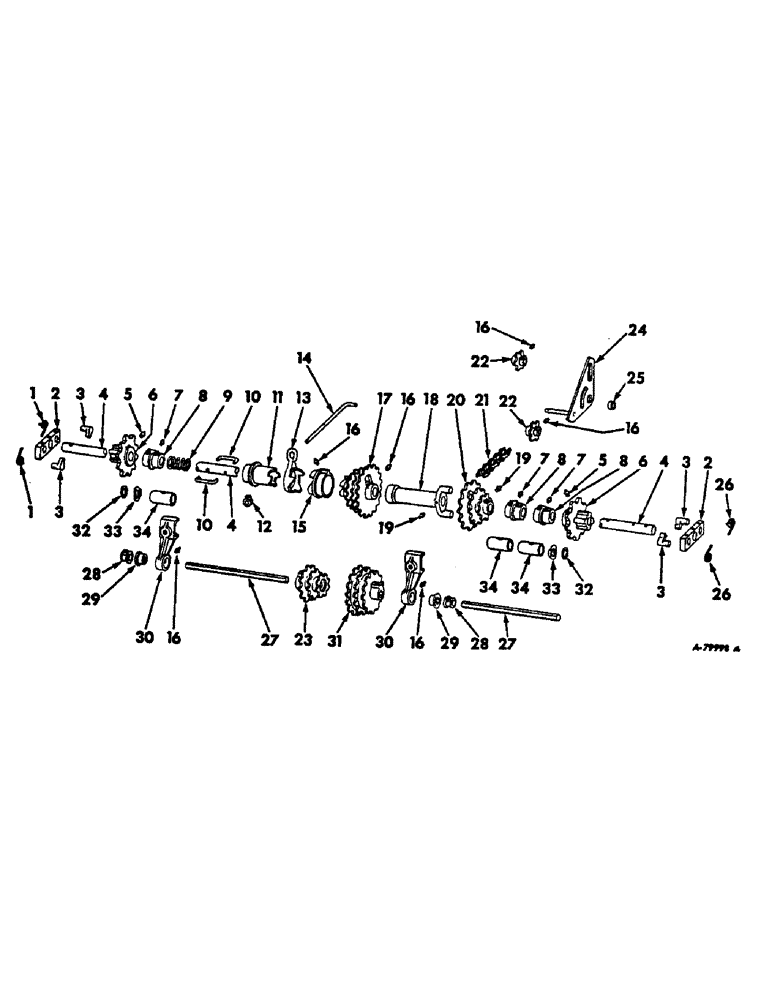

Запчасти Case IH 66-SERIES (U-10) - DRIVE UNIT, FOR 4-ROW PLANTERS

1

472721R1

SPRING

wheel ratchet LH

2шт.

2

472328R1

CARRIER

pawl

2шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 C-Z std-hd

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

2шт.

3

472329R1

PAWL

drive sprocket

4шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

4шт.

4

481811R1

ROD

SHAFT, main drive

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

4шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub, in main driven sprocket

2шт.

6

479140R1

DRIVE SPROCKET

SPROCKET, main wheel driven, 10 T

2шт.

7

66584D

FITTING

3/16 drive type str lub

3шт.

8

481812R11

BEARING ASSY

ASSY, main drive shaft

3шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

3шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

9

269182R1

SPRING

clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

10

PO23196

KEY

clutch

2шт.

11

472334R2

NO LONGER SERVICED

DRIVER, clutch

1шт.

12

514547R11

COLLAR CLAMP

COLLAR ASSY, control

1шт.

142671

SET SCREW

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

1шт.

13

472332R3

CAM

ROD, throwout

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

3шт.

14

472331R1

ROD

CONTROL, clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

15

472333R1

BEARING

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

16

66584D

FITTING

3/16 drive type lub

6шт.

17

472335R2

DRIVE SPROCKET

SPROCKET, main drive, 18T, 16T, 13T

1шт.

21827R1

PIN, 1/4 x 1-1/4 C-Z light coiled spring

1шт.

18

472433R2

COUPLING

CONNECTOR, drive sprocket

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, drive sprocket connector and fertilizer drive sprocket

2шт.

20

472434R1

SPROCKET ASSY.

SPROCKET, fertilizer drive, 17T, 12T and 8T

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

21

CHAIN, drill shaft drive, use 39 links of 1 in. extended pitch agricultural roller chain from 10 ft. roll marked 569088R91 (1) 457113R91 straight connecting link and (1) 457114R91 offset connecting link

1шт.

22

472344R1

SPROCKET

idler 6T

2шт.

23

472337R1

SPROCKET ASSY.

SPROCKET, main drill shaft, 12T, 10T, 8T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

24

472339R91

PLATE

ASSY, chain tightener

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex, jam

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.

25

622567R1

WASHER

BUSHING, chain tightener

1шт.

26

472722R1

SPRING

wheel ratchet RH

2шт.

27

472338R1

BAR

SHAFT, drill

1шт.

28

1431BX

COLLAR CLAMP

COLLAR ASSY, drill shaft

2шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

2шт.

29

625569R1

HUB CAP

BEARING, insert

2шт.

30

472317R1

BRACKET

brg

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

31

473862R1

SPROCKET ASSY.

SPROCKET, main drill shaft

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

32

589937R1

WASHER

wear

5шт.

66584D

FITTING

3/16 drive, type str lub

1шт.

33

481810R1

WASHER

keyed

2шт.

34

484060R1

BUSHING

steel back bronzed

3шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.
