Запчасти Case IH 66-SERIES (U-08) - DRIVE UNIT, FOR 2-ROW PLANTERS

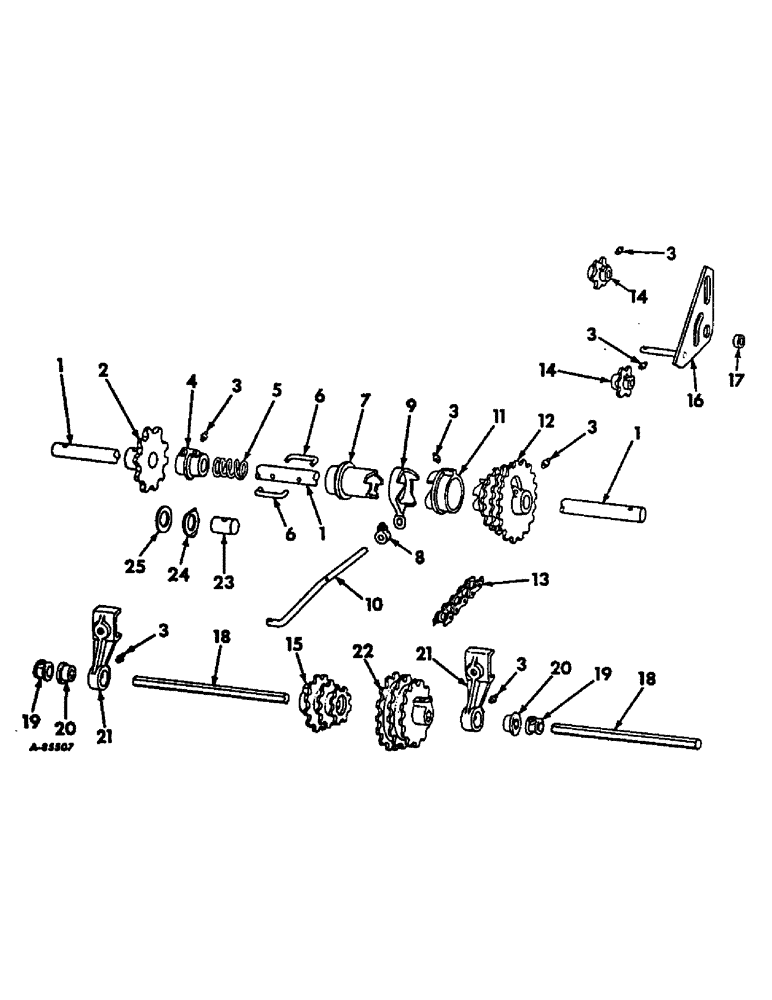

Схема запчастей Case IH 66-SERIES - (U-08) - DRIVE UNIT, FOR 2-ROW PLANTERS
11
3
17
1
19
10
14
20
3
7
25
20
18
8
24
21
6
19
21
1
14
3
3
2
5
23
3
1
4
3
18
15
16
6
22
12
9
13
3

Артикул

Название

Примечание

Количество

1

481917R1

ROD, main drive

1шт.

21982R1

PIN, 3/16 x 1-1/2 C-Z self-opening cot.

2шт.

2

481916R1

SPROCKET ASSY.

SPROCKET, main wheel driven

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

21857R1

PIN, 5/16 x 1-7/8 C-Z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

3

66584D

FITTING

3/16 drive type str lub

7шт.

4

481812R11

BEARING ASSY

ASSY, main drive shaft

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

5

269182R1

SPRING

clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

6

PO23196

KEY

clutch

2шт.

7

472334R3

DRIVE ASSY.

DRIVER, clutch

1шт.

8

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, control

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

1шт.

9

472332R2

DRIVE

CAM, clutch

1шт.

10

484893R1

ROD, clutch control

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

3шт.

11

472333R1

BEARING

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

12

472335R3

SPROCKET, main drive, 18T, 16T, 13T

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

13

CHAIN, drill rod drive, use 39 links of 1 in. extended pitch agricultural roller chain from 10 ft. roll marked 569088R91, (1) 457113R91 straight connecting link, and (1) - 457114R91 offset connecting link

1шт.

14

472334R2

NO LONGER SERVICED

SPROCKET, 6T idler

2шт.

15

472337R1

SPROCKET ASSY.

SPROCKET, main drill shaft, 12T, 10T, 8T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 sq-hd cup-pt set

1шт.

16

472339R91

PLATE

ASSY, chain tightener

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.

17

622567R1

WASHER

BUSHING, chain tightener

1шт.

18

481918R1

BAR

ROD, drill

1шт.

19

1431BX

COLLAR CLAMP

COLLAR ASSY, drill rod

2шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

2шт.

20

625569R1

HUB CAP

BEARING, insert

2шт.

21

472317R1

BRACKET

brg

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

22

473862R1

SPROCKET ASSY.

SPROCKET, main drill rod

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

23

484060R1

BUSHING

steel back bronce

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

24

481810R1

WASHER

keyed

1шт.

25

589937R1

WASHER

wear

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

Выбрано товаров: 52
