Запчасти Case IH 58-SERIES (P-57) - DUPLEX HITCH ATTACHMENT, FOR 6 ROW PLANTERS, 1967 AND SINCE

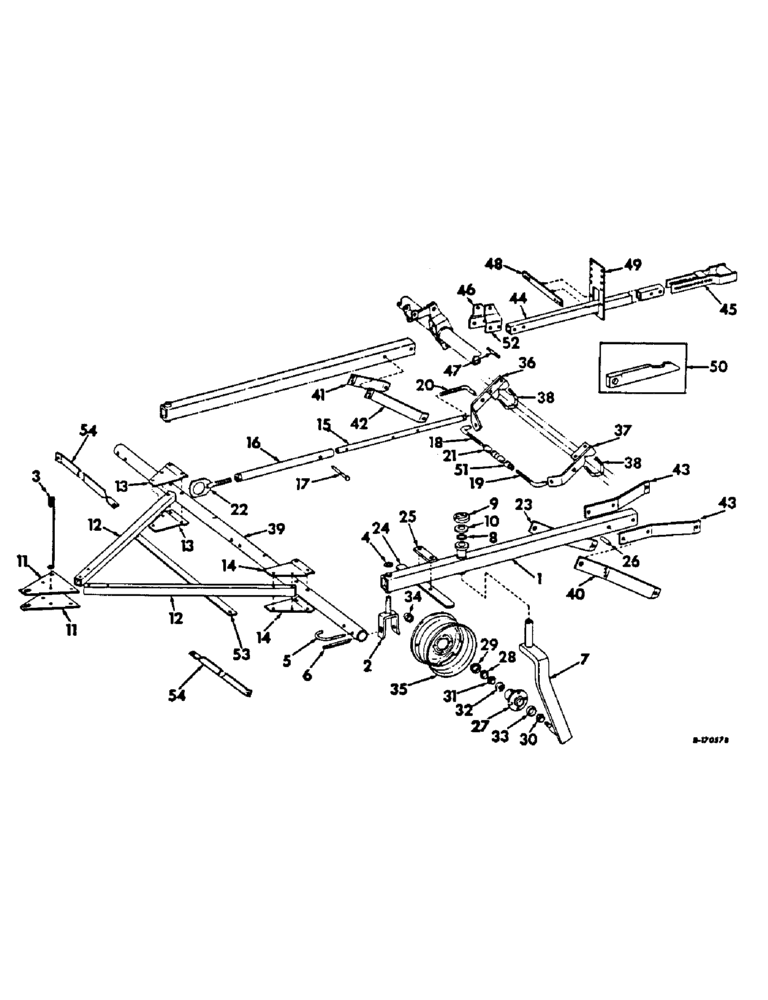

Схема запчастей Case IH 58-SERIES - (P-57) - DUPLEX HITCH ATTACHMENT, FOR 6 ROW PLANTERS, 1967 AND SINCE
4
40
14
6
51
33
50
36
49
39
30
43
13
9
53
42
41
2
54
48
12
14
27
20
19
18
26
21
38
11
31
23
8
11
34
45
13
37
28
16
7
24
17
15
22
5
43
32
3
29
52
25
35
10
54
1
44
46
47
38
12

Артикул

Название

Примечание

Количество

1

487494R11

TONGUE W/PRODUCT GRAPHIC, hitch

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

66584D

FITTING

3/16 drive-type str lub

2шт.

2

487497R1

YOKE ASSY

2шт.

3

651793R1

SUPPORT

hyd hose

1шт.

4

483587R1

WASHER

4шт.

489059R1

PIN

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

5

487500R1

ROD

2шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

6

487501R1

PIN

2шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

2шт.

22101R1

PIN, 1/4 x 1-5/8 C-Z slt spring

2шт.

7

487502R1

AXLE ASSY, wheel

2шт.

8

462997R1

WASHER

wear

2шт.

9

480659R1

CAP, axle

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

2шт.

22197R1

WASHER

17/32 x 1-3/4 x 16 ga C-Z

2шт.

10

480660R1

WASHER, caster wheel rubber

2шт.

11

490049R1

SUPPORT, hitch arm

2шт.

12

490050R1

PIPE

2шт.

271573

BRACKET

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

22064R1

PIN

1 x 4-1/2 C-Z std-hd

1шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

1шт.

13

490051R1

SUPPORT, arm LH

2шт.

14

490052R1

SUPPORT, arm RH

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

15

490053R1

TUBE ASSY, inside

2шт.

16

487490R2

TUBE ASSY

2шт.

17

487492R2

PIN, handle

3шт.

520175R1

CLIP

PIN, quick attachable cot.

3шт.

18

490057R1

ROD

connecting

1шт.

426899

NUT,Jam, 1"-8, G5

1/8 C-Z hex. jam

3шт.

19

490058R1

ROD

connecting

1шт.

20

487506R2

ROD, connecting

2шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

4шт.

21

490059R1

PIPE ASSY, inside

1шт.

66584D

FITTING

3/16 drive type-str lub, for tube and pipe assy

6шт.

22

487507R1

BRACKET ASSY

2шт.

488485R1

WASHER

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

23

490069R1

SUPPORT ASSY, LH

1шт.

24

490078R1

BAR, stabilizer

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

25

487511R1

BAR

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 1/2-13 x 5-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

26

487636R1

SPACER

2шт.

27

472220R11

HUB

W/SET SCREW, wheel

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

2шт.

443804

SCREW, 1/4-28 x 1/4 C-Z hdls slt-ov-pt set

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd

8шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

69442D

NUT

slt hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

28

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

29

472222R1

SLEEVE

oil seal wear

2шт.

30

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

30

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

31

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

32

651817R1

BEARING CUP

BEARING ASSY, wheel hub inner cup

2шт.

33

651814R1

BEARING CUP

BEARING, outer cup

2шт.

34

651194R1

CAP

wheel brg hub

2шт.

35

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

36

487528R2

SUPPORT ASSY, LH

1шт.

37

487529R2

SUPPORT ASSY, RH

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

38

479885R1

BOLT, U

2шт.

39

490065R1

TUBE, hitch drawbar

1шт.

40

490070R1

SUPPORT ASSY, RH

1шт.

41

490075R1

SUPPORT ASSY, RH

1шт.

42

490074R1

SUPPORT, tie tongue lower left

1шт.

43

490066R1

SUPPORT ASSY, tie tongue upper

4шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

8шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

SCREW, 5/8-11 x 5-3/4 C-Z hex-hd cap

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

12шт.

44

490040R1

PIPE, transport hitch

1шт.

45

490043R1

BRACKET ASSY, rear

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 C-Z hex-hd cap

1шт.

131016

WASHER

21/32 x 1-5/16 x .074

2шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP nylon insert

1шт.

490048R1

PIN

pointed

1шт.

46

490046R1

PLATE, LH

1шт.

47

489106R1

PIN, rear hitch

1шт.

520175R1

CLIP

PIN, quick attachable cot.

5шт.

48

490081R1

BAR ASSY, jockey

1шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

49

487526R1

SUPPORT ASSY, drawbar

1шт.

50

487534R1

BEAM ASSY, coupling, two-point hitch adapting attachment, for use w/duplex hitch

2шт.

51

490062R1

PIPE ASSY, outside

1шт.

52

490047R1

PLATE, RH

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

53

490083R1

BAR

1шт.

54

490084R1

BRACE

2шт.

Выбрано товаров: 111
