Запчасти Case IH 58-SERIES (P-54) - HYDRAULIC CYLINDER, 3-1/2 X 8

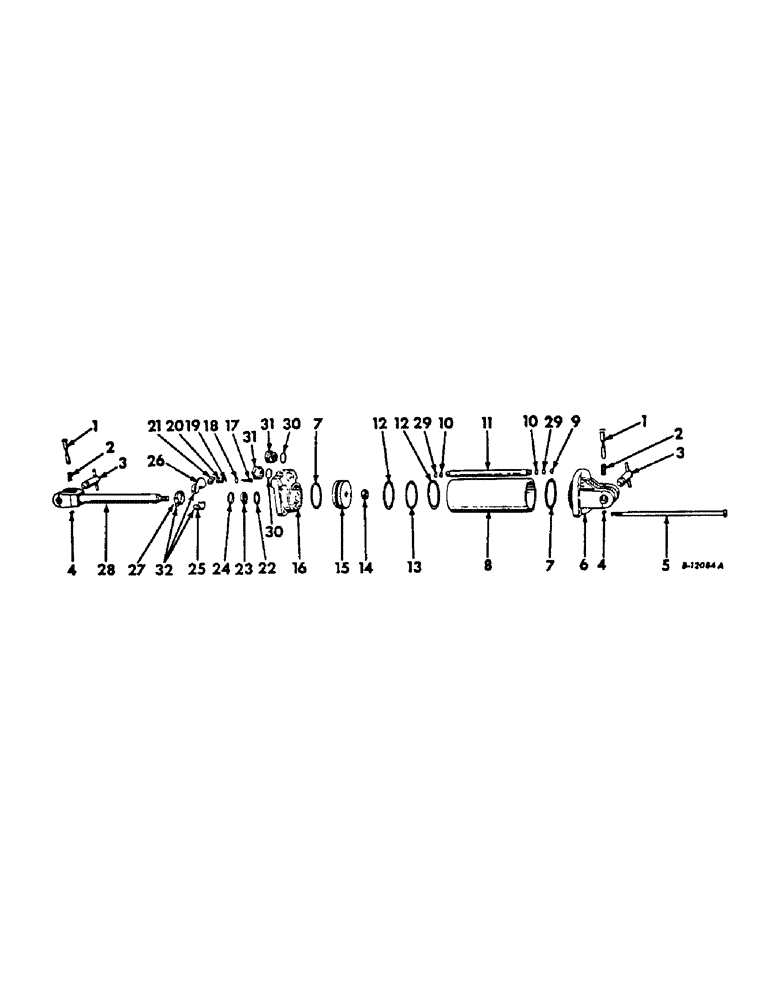

Схема запчастей Case IH 58-SERIES - (P-54) - HYDRAULIC CYLINDER, 3-1/2 X 8
5
16
30
32
26
26
1
27
18
30
24
25
3
12
4
21
17
6
4
12
10
29
2
14
10
1
9
7
2
13
22
23
20
7
3
11
6
19
15
31
29
31

Артикул

Название

Примечание

Количество

371292R94

CYLINDER

ASSY, hydraulic, 3-1/2 x 8

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20

4шт.

6

371298R3

HEAD

cylinder, bottom end

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back up, used only w/two piece return tube

2шт.

10

(Not used in this application)

1шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, pisotn head back up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

14

385054R1

NUT

3/4-16 ESNA stop

1шт.

15

361003R1

HEAD

piston

1шт.

16

371297R11

HEAD (CYLINDER)

HEAD W/O-RINGS & PLUGS

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

20

361007R11

RETAINER

ASSY

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, 1-1/8 x 1-9/16 x 7/32

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

28

361005R13

ROD

YOKE ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug

2шт.

31

9410360

PLUG

cylinder head

2шт.

32

375426R1

COLLAR ASSY, stroke limit

1шт.

392503

SCREW, thumb

1шт.

363138R94

PACKAGE

1шт.

PACKAGE, o-ring service, consists of (1) retainer 354049R1, (1) ring 350429R1, (1) ring 378827R1, (2) ring 377952R1, (1) ring 354047R1, (1) ring 343940R1, (1) ring 21590R1, (1) seal 354048R1, (2) washer 375936R1, (2) washer 371218R2, (2) washer 404015R1, (1) washer 383669R1

1шт.
