Запчасти Case IH 58-SERIES (P-53) - HYDRAULIC CYLINDER, 2-1/2 X 8, DOUBLE ACTING

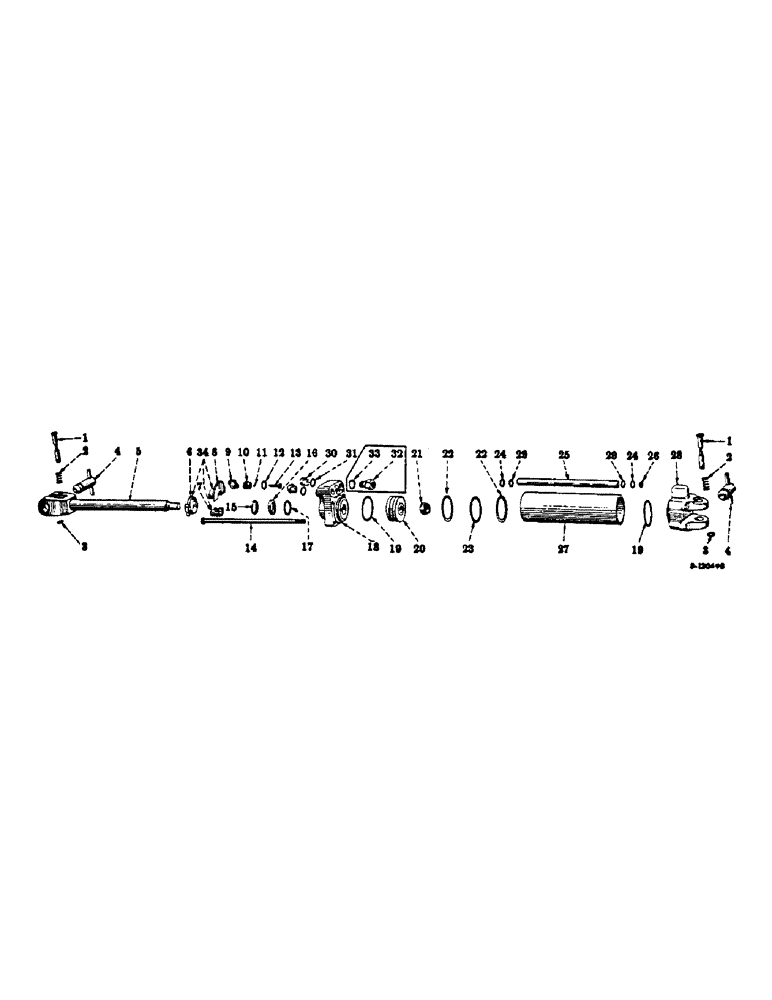

Схема запчастей Case IH 58-SERIES - (P-53) - HYDRAULIC CYLINDER, 2-1/2 X 8, DOUBLE ACTING
9
1
22
28
6
4
20
21
25
14
8
23
2
3
19
33
8
11
18
1
23
12
18
10
27
34
31
28
13
32
24
4
25
18
24
30
28
5
15
2
17

Артикул

Название

Примечание

Количество

371291R95

CYLINDER

ASSY, hydraulic

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

ASSY, pivot

2шт.

5

361005R11

PISTON ROD

ROD ASSY, piston

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R11

RETAINER

ASSY

1шт.

11

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16, limit stop value retainer

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

13

361006R11

VALVE

ASSY

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

cylinder tie

4шт.

15

354049R1

RETAINER

dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, 1-1/8 x 1-9/16 x 7/32

1шт.

18

371295R21

HEAD W/BALL & TWO PLUGS, 50410DA, cylinder front

1шт.

50410DA

PLUG

hydraulic cylinder front

2шт.

19

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 x 2-1/2 x 1/8

2шт.

20

361000R1

HEAD

piston

1шт.

21

385020R1

NUT

3/4-16 lock

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back up

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

25

372211R2

TUBE, hydraulic cylinder return

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

28

371296R3

HEAD

rear cylinder

1шт.

29

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

back up

1шт.

30

9410359

PLUG

front cylinder head

2шт.

31

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64

1шт.

32

372852R1

ADAPTER

cylinder hose, used w/head 371295R1 (NSS)

1шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

use w/head 371295R1 (NSS)

1шт.

34

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

363137R93

SEAL KIT

PACKAGE, o-ring service, consists of (2) o-ring 21590R1, (2) o-ring 343923R1, (1) o-ring 350429R1, (1) o-ring 350657R1, (1) o-ring 354047R1, (2) o-ring 377952R1, (1) seal 354048R1, (2) washer 361013R1, (2) washer 371218R2

1шт.

Выбрано товаров: 40
