Запчасти Case IH 58-SERIES (P-52) - HYDRAULIC EQUIPMENT

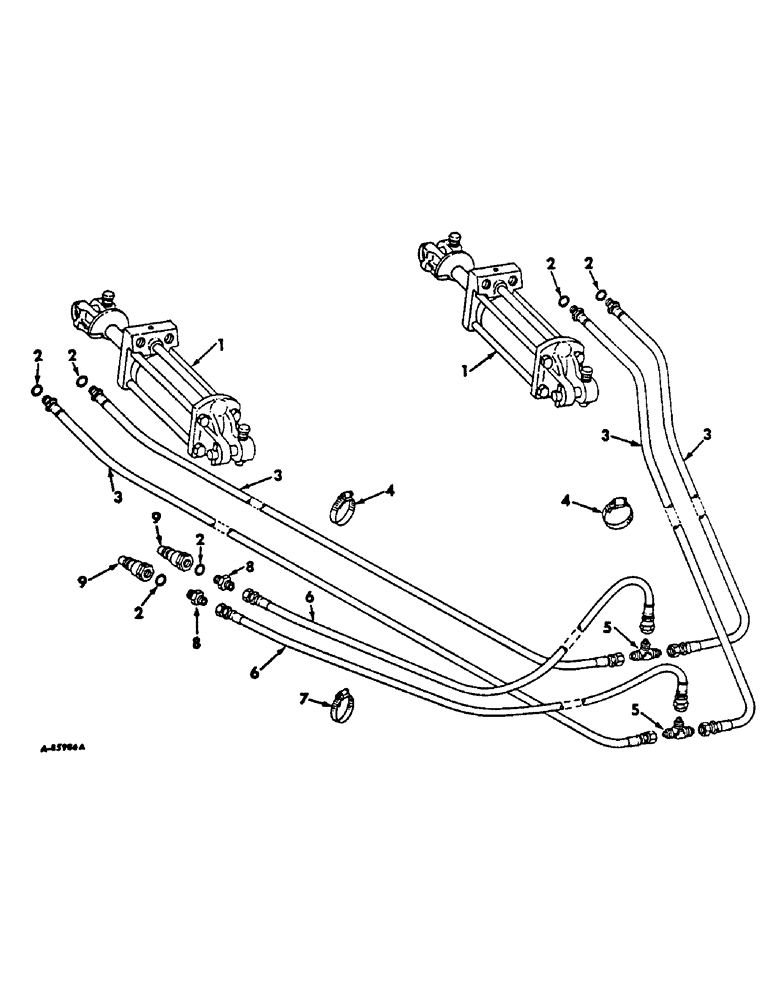

Схема запчастей Case IH 58-SERIES - (P-52) - HYDRAULIC EQUIPMENT
8
4
2
3
2
3
2
6
9
1
6
7
9
2
3
5
4
2
2
5
8
1
3

Артикул

Название

Примечание

Количество

1

371292R92

HYDRAULIC CYLINDER

CYLINDER ASSY, hyd, 3-1/2 x 8

1шт.

1

371291R93

HYDRAULIC CYLINDER

CYLINDER ASSY, hyd, 2-1/2 x 8, w/o fertilizer, for 4 and 6-row planters, for components see list of parts under details of hydraulic cylinder

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

3

464046R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder rear 1/2 ID x 75 in. long, for 8-row planters

4шт.

3

461166R91

HOSE ASSY.

HOSE ASSY, 1/2 ID x 100 in. long, for 4 and 6-row planters

2шт.

4

995223R1

CLAMP

hose

2шт.

5

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way, for 8-row planters

2шт.

6

560193R92

HOSE

ASSY, hydraulic cylinder front 1/2 ID x 86 in. long, for 8-row planters

2шт.

7

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP, hose

1шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 C-Z 37 deg hyd flared tube short swivel

2шт.

9

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

2шт.

Выбрано товаров: 11
