Запчасти Case IH 58-SERIES (P-51) - SPRING TOOTH TILLAGE ATTACHMENT, 4 AND 6-ROW PLANTERS

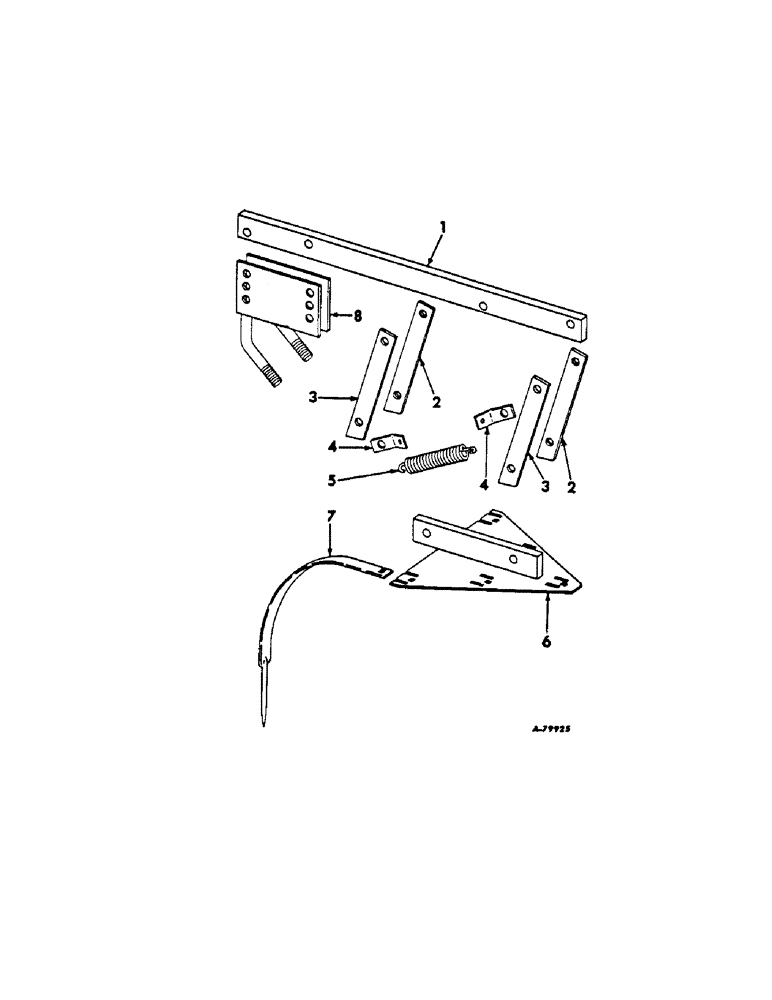

Схема запчастей Case IH 58-SERIES - (P-51) - SPRING TOOTH TILLAGE ATTACHMENT, 4 AND 6-ROW PLANTERS
3
5
2
4
3
4
7
2
6
6
1

Артикул

Название

Примечание

Количество

1

473582R1

BAR, attaching

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

473584R1

STRAP, pivot

2шт.

3

473583R1

STRAP, pivot

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

473585R1

ANCHOR, spring

4шт.

5

635503R1

SPRING,148.8mm Free Length

2шт.

6

473577R91

PLATE ASSY, tooth attaching

1шт.

7

TOOTH, weeder

5шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short sq-nk crg

5шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

8

473580R91

PLATE ASSY, adjusting

1шт.

Выбрано товаров: 17
