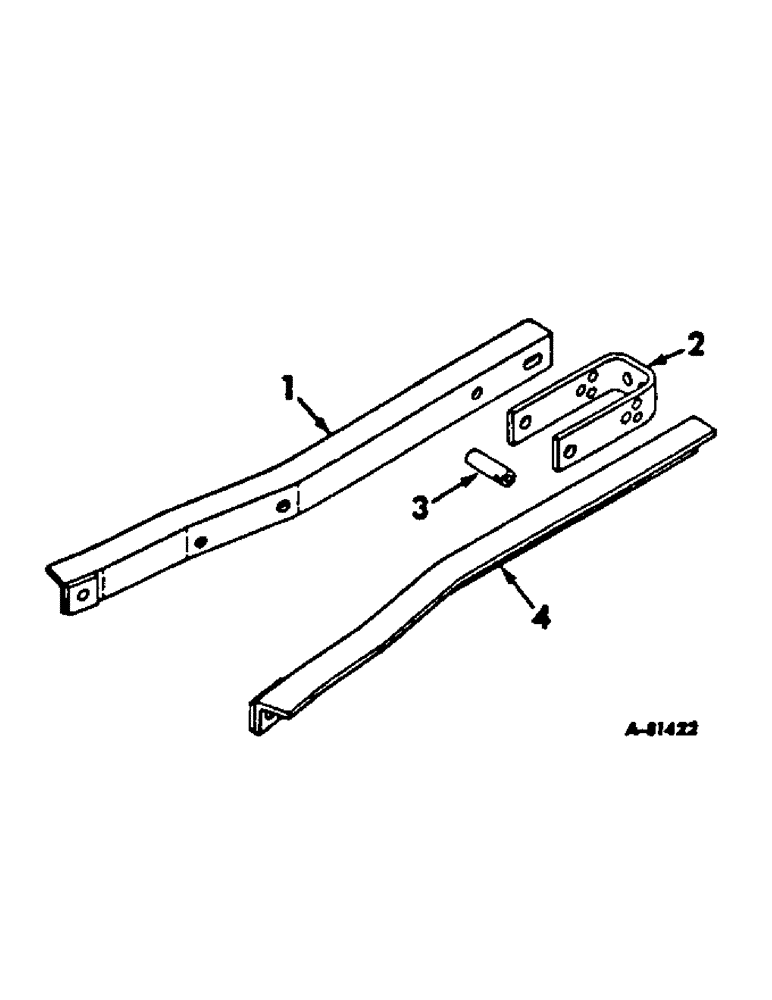

Запчасти Case IH 58-SERIES (P-49) - HITCH EXTENSION ATTACHMENT, FOR 4-ROW PLANTERS

1

480419R11

ANGLE, hitch extension left

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

2

480421R1

BRACKET, clevis

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 C-Z hex-hd cap

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

3

474975R1

POST, spacer

1шт.

4

480420R11

ANGLE, hitch extension right

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

HOSE, by-pass, 1/2 x 7/8 x 24 in. long, make from 526602R1 hose 50 ft long

2шт.

Required when attachment is used on planter w/pre-emergence liquid chemical equipment.

1шт.

475220R1

COUPLING, 1/2 in. hose shank, 3/4 in. female hose swivel, brass

2шт.

Required when attachment is used on planter w/pre-emergence liquid chemical equipment.

1шт.

475222R1

WASHER, hose coupling

4шт.

Required when attachment is used on planter w/pre-emergence liquid chemical equipment.

1шт.

478015R1

COUPLING, 1/2 in. hose shank, 3/4 in. male hose, brass

2шт.

Required when attachment is used on planter w/pre-emergence liquid chemical equipment.

1шт.

526610R91

CLAMP, pump hose

4шт.

Required when attachment is used on planter w/pre-emergence liquid chemical equipment.

1шт.
