Запчасти Case IH 58-SERIES (P-45[A]) - JACK ATTACHMENT, FOR 4 AND 6-ROW PLANTERS

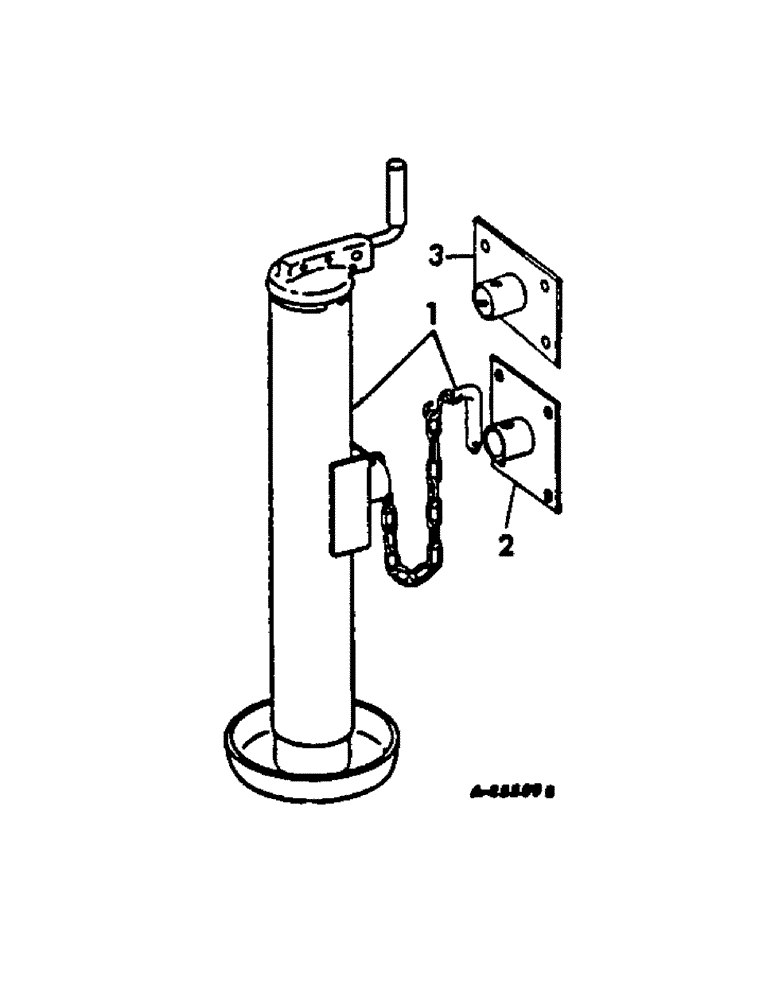

Схема запчастей Case IH 58-SERIES - (P-45[A]) - JACK ATTACHMENT, FOR 4 AND 6-ROW PLANTERS
3
2
1

Артикул

Название

Примечание

Количество

1

JACK ASSY, serviced only as a machine attachment

1шт.

2

472054R2

PIN, retainer

1шт.

3

484672R91

BRACKET, pivot mounting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 6
