Запчасти Case IH 58-SERIES (P-44) - FOUR WHEEL DRIVE ATTACHMENT, 6 ROW PLANTERS, 1967 AND SINCE

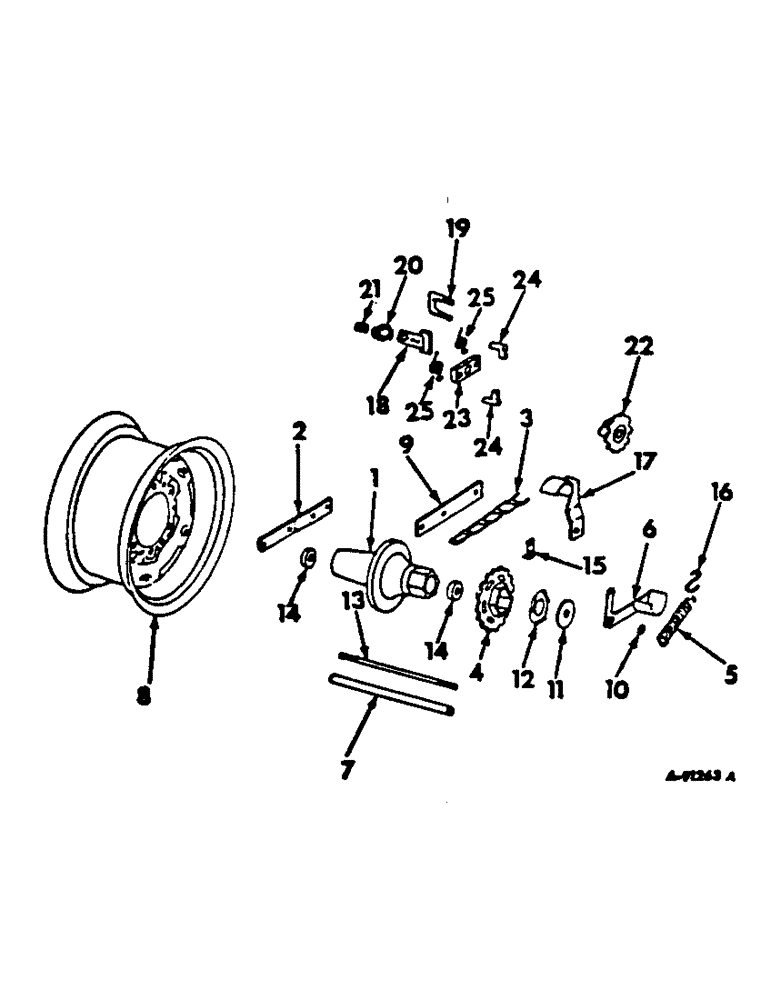

Схема запчастей Case IH 58-SERIES - (P-44) - FOUR WHEEL DRIVE ATTACHMENT, 6 ROW PLANTERS, 1967 AND SINCE
3
6
4
9
8
18
17
19
25
14
24
15
2
5
11
1
24
20
12
16
14
22
10
7
13
23
25
21

Артикул

Название

Примечание

Количество

1

484029R1

HUB

wheel

2шт.

2

490024R1

ARM, offset

2шт.

3

484038R2

ARM, wheel

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 3/8-16 x 1-3/4 C-Z sq-nk crg

6шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 3/8-16 x 2 C-Z sq-nk crg

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

4

484030R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

2шт.

5

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

6

490009R1

ARM

ASSY, drive chain tightener LH

1шт.

6

490010R1

ARM

ASSY, drive chain tightener RH

1шт.

484032R1

WASHER

2шт.

7

484031R2

SPACER

PIPE, wheel axle

2шт.

8

463034R1

RIM

WHEEL, drive 14 in.

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

9

486003R91

CHAIN, roller

2шт.

10

484033R1

RING

chain tightener

2шт.

11

484034R1

WASHER

retaining

2шт.

12

484035R1

WASHER

wear

2шт.

13

484434R1

ROD

axle

2шт.

21844R1

WASHER

25/32 x 1-1/8 x 16 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

14

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

spindle

4шт.

15

473562R1

ANCHOR, spring

2шт.

16

474374R1

HOOK

S

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

490025R1

ARM ASSY, chain slide left

1шт.

17

490026R1

ARM ASSY, chain slide right

1шт.

18

480052R91

SUPPORT ASSY, bearing

2шт.

19

478243R1

BOLT,1/2" - 13 x 3.6"

U-BOLT, rearing support

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20

481812R11

BEARING ASSY

ASSY, drive shaft

2шт.

21

484060R1

BUSHING

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

2шт.

66584D

FITTING

3/16 drive str lub

2шт.

22

546431C1

SPROCKET, drive, 12T

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub

2шт.

21636R1

PIN, 1/4 x 1-1/2 self-opening cot.

2шт.

589937R1

WASHER

wear

2шт.

23

472328R1

CARRIER

pawl

2шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 C-Z std-hd

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

2шт.

24

472329R1

PAWL

drive

4шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

4шт.

25

472721R1

SPRING

wheel ratchet LH

2шт.

25

472722R1

SPRING

wheel ratchet RH

2шт.

Выбрано товаров: 51
