Запчасти Case IH 58-SERIES (P-42) - FOUR WHEEL ATTACHMENT, 8 ROW PLANTERS

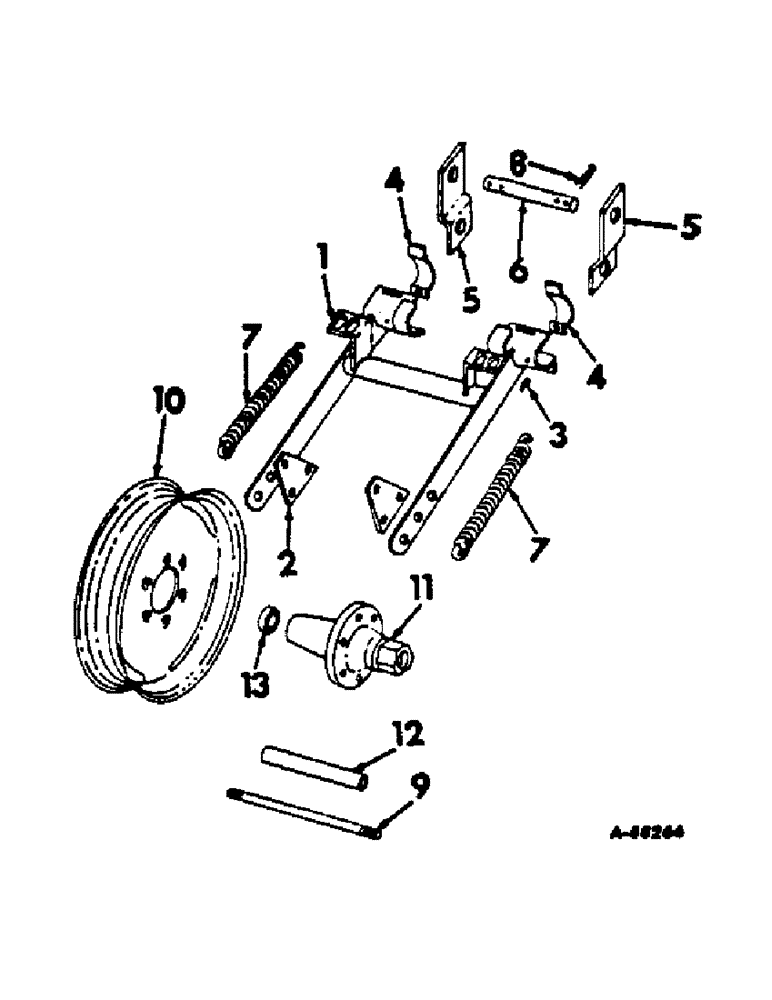

Схема запчастей Case IH 58-SERIES - (P-42) - FOUR WHEEL ATTACHMENT, 8 ROW PLANTERS
10
7
6
4
11
4
5
1
13
9
12
5
3
2
8
7

Артикул

Название

Примечание

Количество

1

486982R1

FRAME ASSY, wheel

2шт.

2

486991R1

ANCHOR, spring

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 C-Z hex-hd cap

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub

4шт.

4

486992R1

BEARING, wheel frame upper

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C-Z hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

486993R1

LINK, crank wheel

4шт.

6

486994R1

PIN, link wheel

2шт.

21953R1

HEADED PIN,3/4" x 6"

PIN, 3/4 x 6 C-Z std-hd

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

2шт.

21635R1

PIN, 1/4 x 1-1/4 C-Z self-opening cot.

2шт.

520175R1

CLIP

PIN, quick attachable cotter

4шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

4шт.

7

486995R1

SPRING, extension

4шт.

8

520175R1

CLIP

PIN, quick attachable cot.

4шт.

9

472280R2

ROD

AXLE, wheel

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter 14 in., tire size 7.50 or 8.00 x 14

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

11

472278R2

HUB CAP

HUB, wheel

2шт.

12

464435R1

SPACER

wheel axle

2шт.

13

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

wheel axle ball

4шт.

480968R1

SPACER

auger housing, see note

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 C-Z sq-nk crg, see note

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z, see note

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , See note 5/16"

4шт.

120376

NUT,5/16"-18, G5

See note 5/16"-18, G5

4шт.

Выбрано товаров: 32
