Запчасти Case IH 58-SERIES (P-41) - DEPTH BAND AND SCRAPER ATTACHMENT, ONE PER ROW

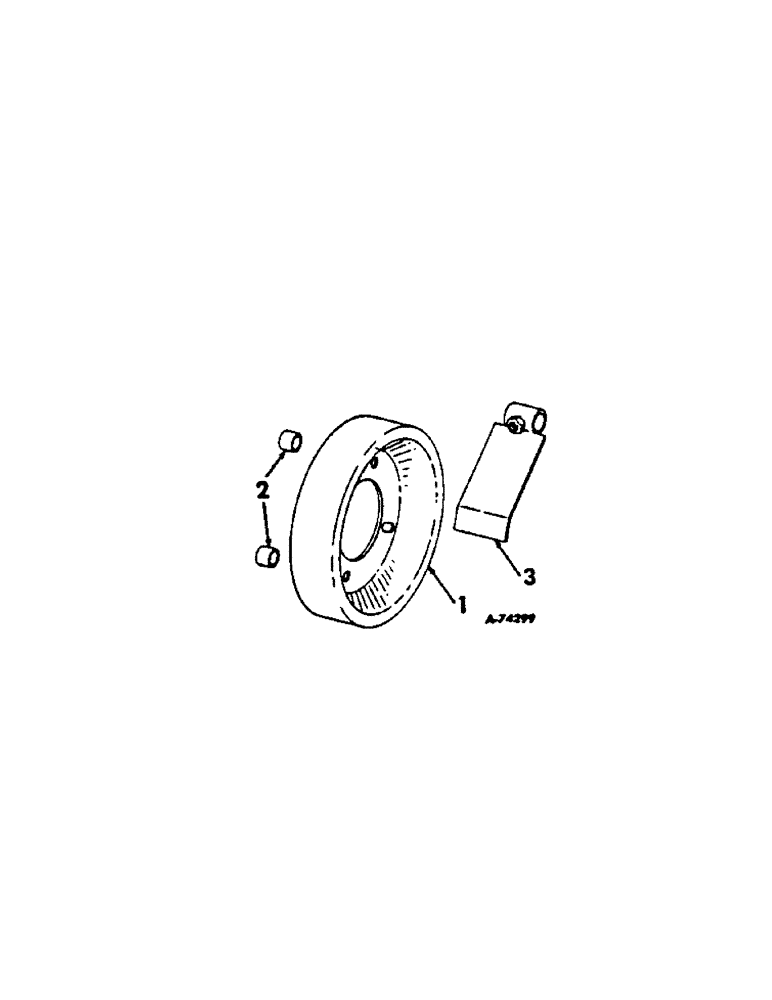

Схема запчастей Case IH 58-SERIES - (P-41) - DEPTH BAND AND SCRAPER ATTACHMENT, ONE PER ROW
2
3
1

Артикул

Название

Примечание

Количество

1

461915R1

DRUM

BAND, depth, 9/16 in. depth, 11-3/4 in. OD

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

480908R1

BAND, depth, .750 depth, 11 in. OD

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1

493540R1

DRUM

BAND, depth, 1 in. depth, 10.5 in. OD

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

524670R1

DRUM

BAND, depth, 1-1/4 in. depth, 9-7/8 in OD

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

18685

BRACKET

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

493539R1

DRUM

BAND, depth, 1-1/2 in. depth, 9.5 in. OD

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

1

524671R1

DRUM

BAND, depth, 2 in. depth, 8-3/8 in. OD

2шт.

18685

BRACKET

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

524621R1

BAND, depth, 2-3/4 in. depth, 6-7/8 in. OD

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18685

BRACKET

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

4шт.

2

525820R1

SPACER,3/8" Pipe x .469"

depth band, for 9/16, 1-1/4 and 2 inch depth band

4шт.

3

471242R11

SUPPORT

SCRAPER ASSY, depth band

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

Выбрано товаров: 33
