Запчасти Case IH 58-SERIES (P-37[A]) - DISK FURROWING ATTACHMENT, W/9 INCH DISK, ONE PER ROW

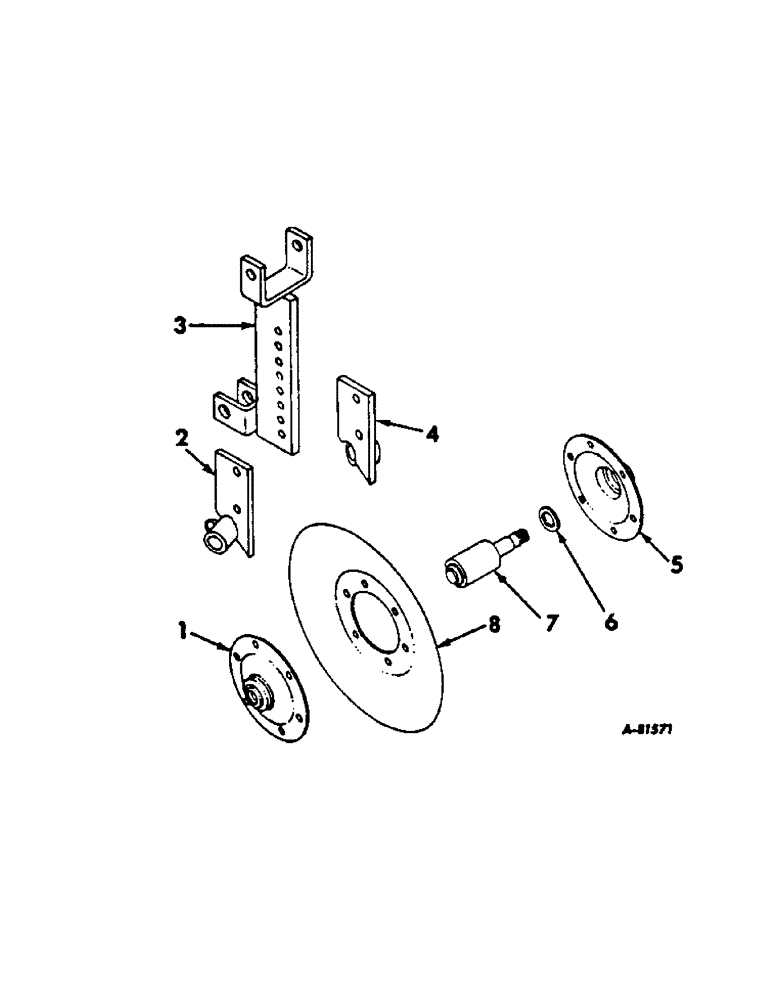

Схема запчастей Case IH 58-SERIES - (P-37[A]) - DISK FURROWING ATTACHMENT, W/9 INCH DISK, ONE PER ROW
7
5
8
2
4
3
6
1

Артикул

Название

Примечание

Количество

1

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

brg outer

2шт.

2

480676R91

BRACKET

ASSY, disk RH mounting

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

3

480672R91

BRACKET ASSY, disk mounting

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 C-Z hex-hd cap

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

480675R91

BRACKET

ASSY, disk LH mounting

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

brg inner

2шт.

6

480679R1

WASHER

dirt seal felt

2шт.

7

478034R1

BEARING ASSY, disk ball

2шт.

8

480674R1

DISC

DISK, 9 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

Выбрано товаров: 23
