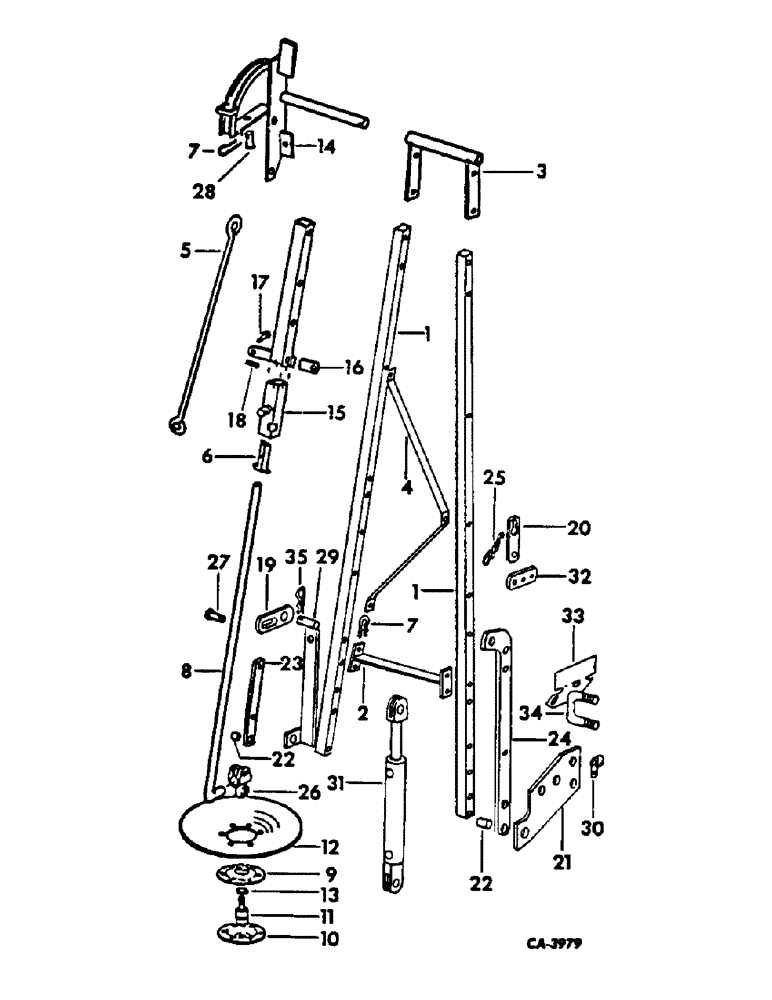

Запчасти Case IH 58-SERIES (P-33) - TWELVE-ROW HYDRAULIC MARKER ATTACHMENT, FOR 6-ROW PLANTERS, 1971 AND SINCE

1

489754R3

TUBE

marker, 8-row

4шт.

1

489771R3

TUBE, marker, 12 row

4шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

493946R1

BRACKET

ASSY, tube

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

6шт.

3

489758R1

TUBE

PIPE ASSY

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd sq-nk crg

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

489761R1

SUPPORT

BRACE

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

5

489768R1

ROD

marker brace, 8 row

2шт.

5

489763R1

ROD, marker brace, 12 row

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

489764R1

BLOCK

2шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 znd sq-hd cup-pt set

2шт.

Q3808

PIN, 7/8 x 5 std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

7

520175R1

CLIP

PIN, quick attachable cot.

2шт.

8

478033R1

ROD

marker disk clamp

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

9

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk furrow brg inner

2шт.

10

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk furrow brg outer

2шт.

11

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

12

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

13

480679R1

WASHER

dirt seal felt

2шт.

14

489774R1

PULLEY

ASSY, LH

1шт.

14

489775R1

PULLEY

ASSY, RH

1шт.

20328

PIN, 1/4 x 1-1/2 C-Z cot.

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

6шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

479784R1

TUBE ASSY, 8 row

1шт.

15

489786R1

TUBE

ASSY, 8 row

1шт.

15

489781R2

TUBE ASSY, LH, 12 row

1шт.

15

489783R1

TUBE ASSY, RH, 12 row

1шт.

16

489787R1

LINK

2шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

4шт.

17

586591R1

COTTER PIN

PIN, quick attachable cot.

4шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

18

547705R1

LINK TRANSPORT

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

465867R1

HEADED PIN,1/2" x 2 1/8"

PIN, 1/2 x 2-1/8 znd std-hd

2шт.

19

548076R1

LINK

ACTUATOR CHAIN

2шт.

22073R1

PIN, 1/2 x 7/8 znd std-hd 1/2" x 7/8"

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

21

548065R1

ANCHOR ASSY, cyl LH

1шт.

21

548066R1

ANCHOR ASSY, cyl RH

1шт.

22

493982R1

BUSHING

marker pivot

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

23

548077R1

ARM

marker pivot

2шт.

24

548078R2

ARM

marker lift LH

1шт.

24

548079R2

ARM

marker lift RH

1шт.

19077R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 no. 3 repair, hd plow

2шт.

25

489767R92

CHAIN (AG)

CHAIN, marker

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 znd hex-hd mach

2шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

2шт.

480891R1

NUT

1/4-20 znp flange lock

2шт.

256

478032R1

CLAMP

axle

2шт.

27

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

PIN, 1/2 x 3-7/16 C-Z std-hd

2шт.

28

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

29

548070R1

STRAP ASSY, pivot LH

1шт.

29

548071R1

STRAP ASSY, pivot RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

30

493962R2

CLAMP, hose

8шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

4шт.

31

547993R92

CYLINDER, 2 x 8 single action hyd., for list of serviceable parts see hydraulic cylinder 2 x 8 single action

2шт.

32

548075R1

BRACKET, actuator link

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16 znd hex.

2шт.

33

548080R1

SHIELD, miter gear

2шт.

34

548069R1

U-BOLT

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

35

520175R1

CLIP

PIN, quick attachable cotter

1шт.
