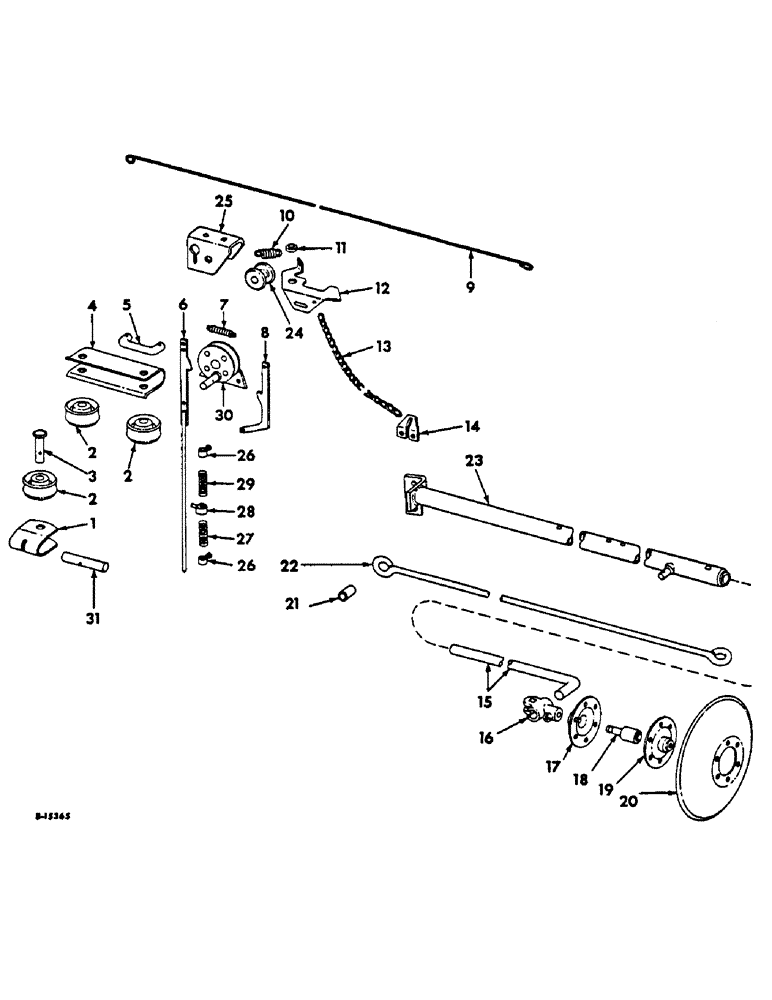

Запчасти Case IH 58-SERIES (P-27) - MARKER UNIT, DISK TYPE, FOR 4 AND 6-ROW PLANTERS, 1966 TO 1967
№
Артикул
Название
Примечание
Количество
1
472374R1
BRACKET
pulley
1шт.
2
625071R1
PULLEY
SHEAVE, chain roller
3шт.
3
474110R1
PIN
marker sheave
1шт.
13094R1
Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"
1шт.
4
472355R1
CASE, idler pulley
1шт.
H2808
HEADED PIN,5/8" x 2"
PIN, 5/8 x 2 std-hd
2шт.
13094R1
Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"
2шт.
5
484447R1
ROD
idler pulley pivot
1шт.
13121R1
Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"
1шт.
6
472363R91
TRIP
ASSY, marker latch
1шт.
13042R1
AXLE PIN,1/8" x 3/4"
Pin, Split (Cotter), , self-opening 1/8" x 3/4"
2шт.
7
370972R1
SPRING
marker latch trip
1шт.
8
474448R1
LATCH
RACK, marker trip, offset
1шт.
102670
RIVET
3/16 x 7/16 small b-hd
1шт.
9
480059R1
ROD, marker latch trip left
1шт.
9
480060R1
ROD, marker latch trip right
1шт.
10
37AC
SPRING
latch
2шт.
M906
HEADED PIN,7/16" x 1 1/8"
PIN, 7/16 x 1-1/8 std-hd
2шт.
11
659393R1
RING
SPACER, latch pivot
2шт.
12
472359R2
LATCH
marker, left
1шт.
12
472360R2
LATCH
marker, right
1шт.
NLS
NO LONGER SERVICED
7/16-14 hex.
2шт.
W6652
WASHER
15/32 x 1 x 16 ga
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
13
480058R2
CHAIN (AG)
CHAIN, marker
1шт.
14
464003R1
CLIP
marker chain
2шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
15
478033R1
ROD
marker disk clamp
2шт.
16
478032R1
CLAMP
axle
2шт.
15073R1
BOLT, 1/2-13 x 2 sq-nk crg
2шт.
102637
NUT,1/2"-13, G5
2шт.
102894
SET SCREW
3/8-16 x 3/4 sq-hd cup-pt set
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
17
478035R1
BEARING HOUSING,109 mm OD x 19.3 mm
disk brg inner
2шт.
18
ST438
BEARING
ball
2шт.
480679R1
WASHER
dirt seal felt
2шт.
19
478036R1
BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm
disk brg outer
2шт.
20
479473R1
DISC
DISK, 11 in.
2шт.
120376
NUT,5/16"-18, G5
12шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16-18 x 3/4 C-Z hex-hd cap
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
21
478176R1
BUSHING
brace rod
2шт.
22
478171R1
ROD, marker
2шт.
13094R1
Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"
2шт.
10620P
WASHER
21/32 x 1-1/2 x 16 ga
4шт.
23
478165R91
PIPE ASSY, marker right hand
1шт.
102637
NUT,1/2"-13, G5
1шт.
PO20069
PIN, 7/8 x 4-7/8 std-hd
1шт.
13121R1
Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"
1шт.
110452
SET SCREW
1/2 x 1-1/2 sq-hd cup-pt set
1шт.
23
478166R91
PIPE ASSY, marker left hand
1шт.
102637
NUT,1/2"-13, G5
1шт.
PO20069
PIN, 7/8 x 4-7/8 std-hd
1шт.
13121R1
Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"
1шт.
110452
SET SCREW
1/2 x 1-1/2 sq-hd cup-pt set
1шт.
24
625036R1
PULLEY
ROLLER, lift chain
2шт.
SA3442
PIN, 1/2 x 2-15/16 std-hd
2шт.
13094R1
Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"
2шт.
25
472372R2
BRACKET, latch left
1шт.
25
472373R2
BRACKET, latch right
1шт.
NLS
NO LONGER SERVICED
7/16-14 hex.
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
26
514547R11
COLLAR CLAMP
COLLAR ASSY, control
2шт.
102881
SET SCREW,Sq Hd, 5/16"-18 x 1/2"
SCREW, 5/16-18 x 1/2 sq-hd cup-pt set
2шт.
27
373560R1
SPRING
alternator trip rod lower
1шт.
28
PO2437
PIVOT
TRUNNION, alternator rod
1шт.
13042R1
AXLE PIN,1/8" x 3/4"
Pin, Split (Cotter), , self-opening 1/8" x 3/4"
1шт.
29
255118R1
VALVE SPRING
SPRING, marker trip rack
1шт.
30
472361R91
RATCHET
ASSY, marker latch
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8-16 x 1 short-sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
13042R1
AXLE PIN,1/8" x 3/4"
Pin, Split (Cotter), , self-opening 1/8" x 3/4"
1шт.
Q1505
WASHER
13/32 x 1 x 16 ga
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
31
472375R1
PIN
pivot
1шт.
576517R1
LOCK PIN,1/4" x 1 1/2", Slotted
Pin, 1/4" x 1 1/2", Slotted
1шт.
Выбрано товаров: 80
