Запчасти Case IH 58-SERIES (P-20) - PRESS WHEEL, PAN TYPE, ONE PER ROW

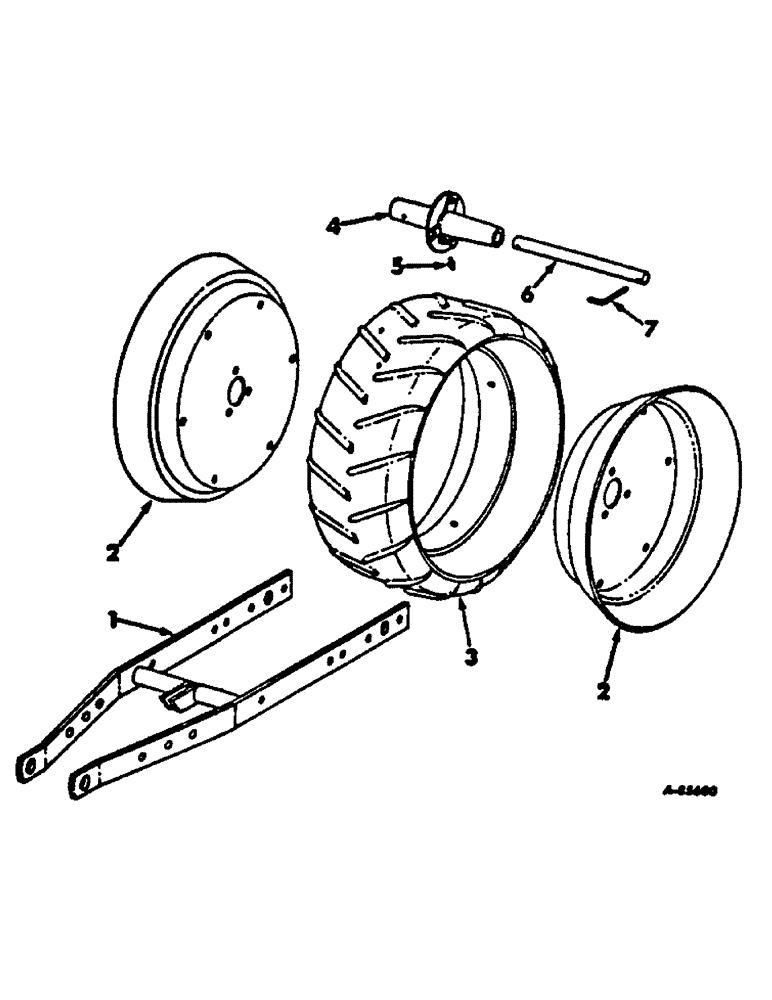

Схема запчастей Case IH 58-SERIES - (P-20) - PRESS WHEEL, PAN TYPE, ONE PER ROW
2
7
4
5
1
3
6
2

Артикул

Название

Примечание

Количество

1

472101R91

SPARE PART

FRAME ASSY, press wheel

1шт.

2

483328R1

DISC

DISK HALF, press wheel 7 x 16

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

483118R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic flat tread

1шт.

4

472106R1

HUB

press wheel

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

6

461911R1

PIN

AXLE, press wheel

1шт.

7

461912R2

PIN

axle retaining

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

Выбрано товаров: 15
