Запчасти Case IH 58-SERIES (P-18) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW

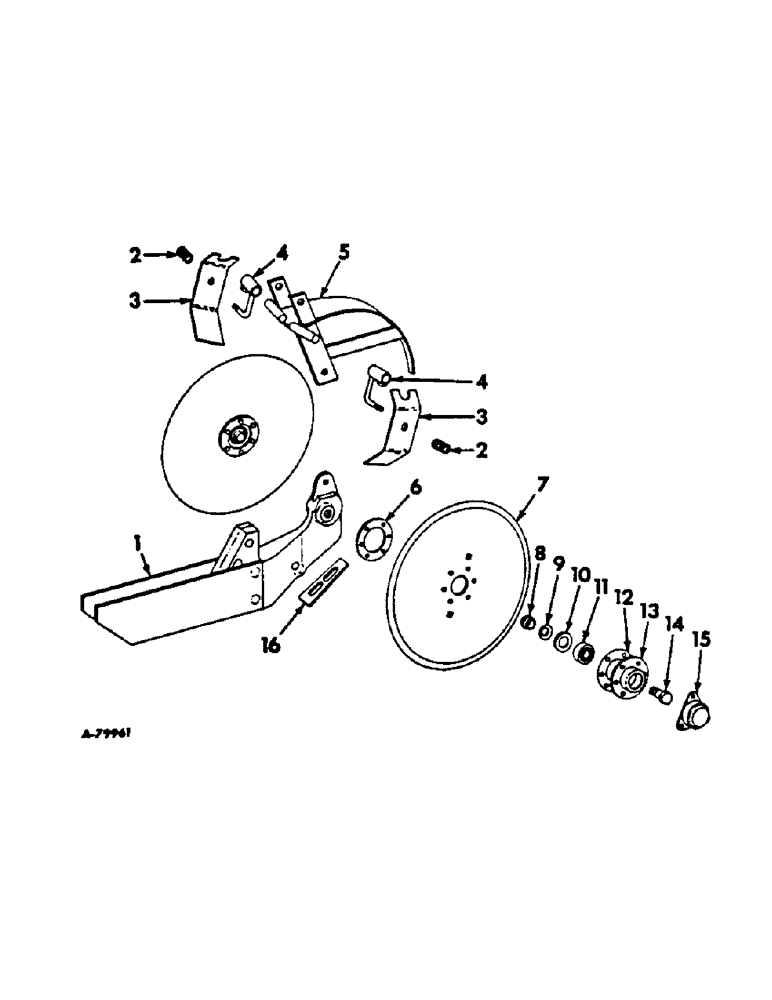

Схема запчастей Case IH 58-SERIES - (P-18) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW
13
11
16
10
2
2
6
14
12
3
4
4
1
15
3
9
8
7
5

Артикул

Название

Примечание

Количество

1

474341R91

OPENER

RUNNER ASSY, double disk, hill drop

1шт.

1

474444R91

OPENER

RUNNER ASSY, double disk, drill

1шт.

20156R1

RIVET, 3/8 x 2-5/16 74 deg csk-hd

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2-13 x 2-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

6633

SPRING

1шт.

3

471240R1

SUPPORT

SCRAPER, disk

1шт.

4

474344R91

SPACER

ASSY, scraper

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

102894

SET SCREW

3/8-16 x 3/4 sq-hd cup-pt set

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

5

474337R12

GUARD

ASSY, double disk opener

1шт.

18893R1

BOLT, 5/16 x 1 C-Z sq-hd mach

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 C-Z hex-hd mach

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 CDP hex. lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

464480R1

WASHER

WASHER, reinforcement

2шт.

7

471235R1

DISC

DISK, opener

2шт.

8

602988R1

SPACER

seal retainer

2шт.

9

464628R1

SEAL

2шт.

10

602994R1

FLANGE

corrosion prevention

2шт.

11

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, ball

2шт.

12

602992R1

GASKET

disk

2шт.

13

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk brg

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, brg disk LH thd

1шт.

14

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, brg disk RH thd

1шт.

15

464483R1

CYLINDER END CAP

CAP, disk brg

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

6шт.

16

478203R1

BAR

SCRAPER, inside

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

541505R91

DISC

DISK BEARING HOUSING ASSY, composed of (1) disk 471235R1, (1) gasket 602992R1, (1) housing 602989R1, (3) screws 180016, (3) washers 120380, (1) washer 464480R1

1шт.

Выбрано товаров: 38
