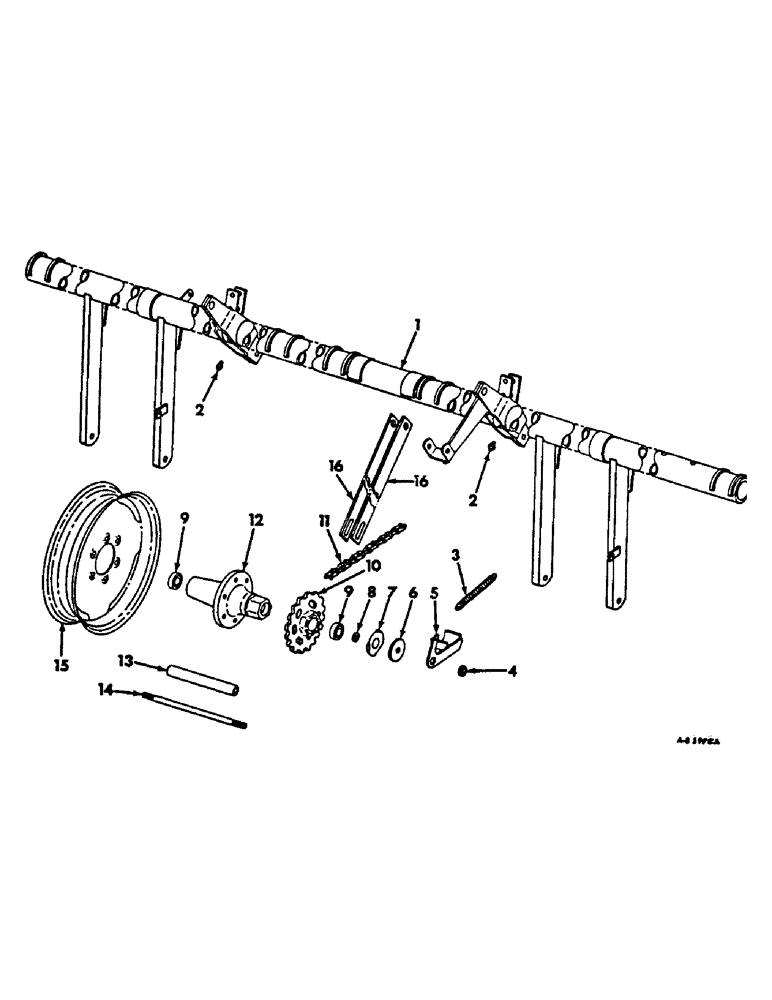

Запчасти Case IH 58-SERIES (P-13) - FRAME AND WHEEL, FOR 8-ROW PLANTERS

1

484337R92

FRAME ASSY, wheel

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 PTF str lub, in cyl. bracket arm

2шт.

3

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

2шт.

4

484033R1

RING

WASHER, tightener arm

2шт.

21844R1

WASHER

25/32 x 1-1/8 x 16 ga C-Z

2шт.

5

490009R1

ARM

ASSY, chain tightener LH

2шт.

6

484034R1

WASHER

retaining

2шт.

7

484035R1

WASHER

wear

2шт.

8

484032R1

WASHER

wheel

2шт.

9

464347R91

BEARING

ASSY, ball

4шт.

10

484510R1

SPROCKET, wheel drive, 20T

2шт.

11

CHAIN, main drive, use 61 links of 1-1/4 extended pitch agricultural transmission roller chain from a 10 ft. roll marked 569089R91, 1 connecting link 456980R91 and 2 offset links 456929R91

2шт.

12

484029R1

HUB

main wheel

2шт.

13

484031R1

PIPE

main wheel

2шт.

14

484434R1

ROD

axle

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

15

606670R91

WHEEL

ASSY, main 18 x 5.50F rim, for 7.50 x 18 tire

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel mounting

12шт.

16

472299R1

LINK

transport

4шт.

520175R1

CLIP

PIN, quick attachable cot.

4шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.
