Запчасти Case IH 58-SERIES (P-11) - HITCH WITH JACK, FOR 8-ROW PLANTERS

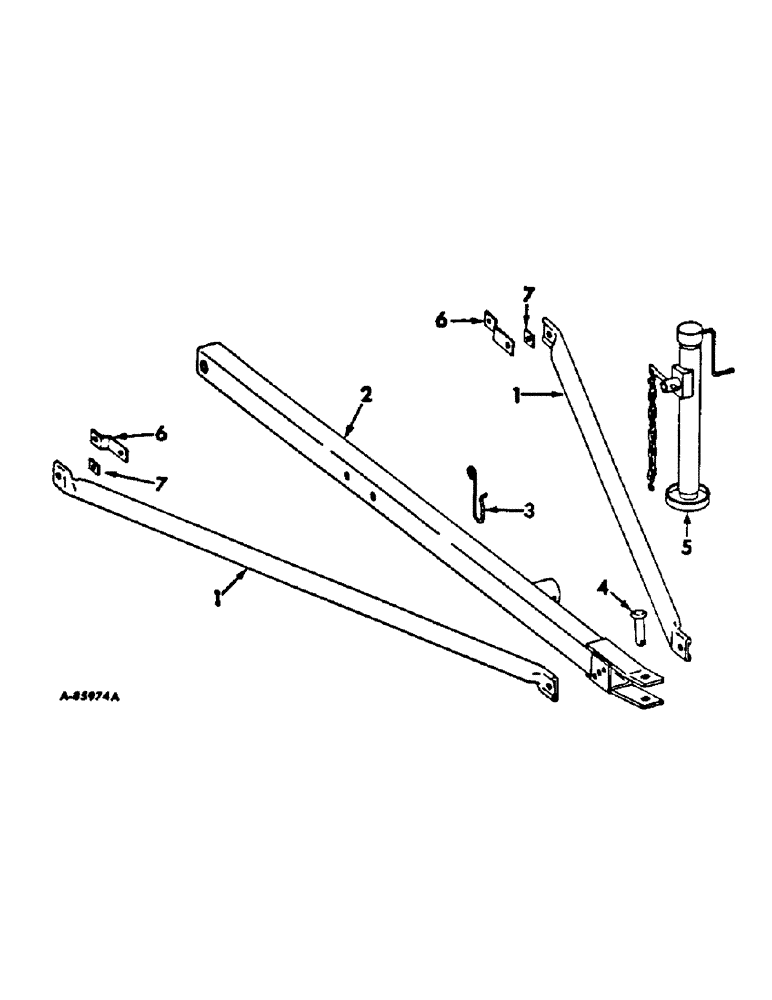

Схема запчастей Case IH 58-SERIES - (P-11) - HITCH WITH JACK, FOR 8-ROW PLANTERS
7
2
4
3
1
7
5
6
1
6

Артикул

Название

Примечание

Количество

1

484332R1

BRACE, tongue

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

2

484326R91

TONGUE ASSY

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 C-Z hex-hd cap

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

463525R1

SUPPORT, hose

1шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

4

932475R1

AXLE PIN

PIN, hitch

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

5

484335R91

JACK ASSY

1шт.

6

489968R1

STRAP, tongue brace, 1967 and since

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

M32243

SPACER, tongue brace, 1967 and since

2шт.

Выбрано товаров: 21
