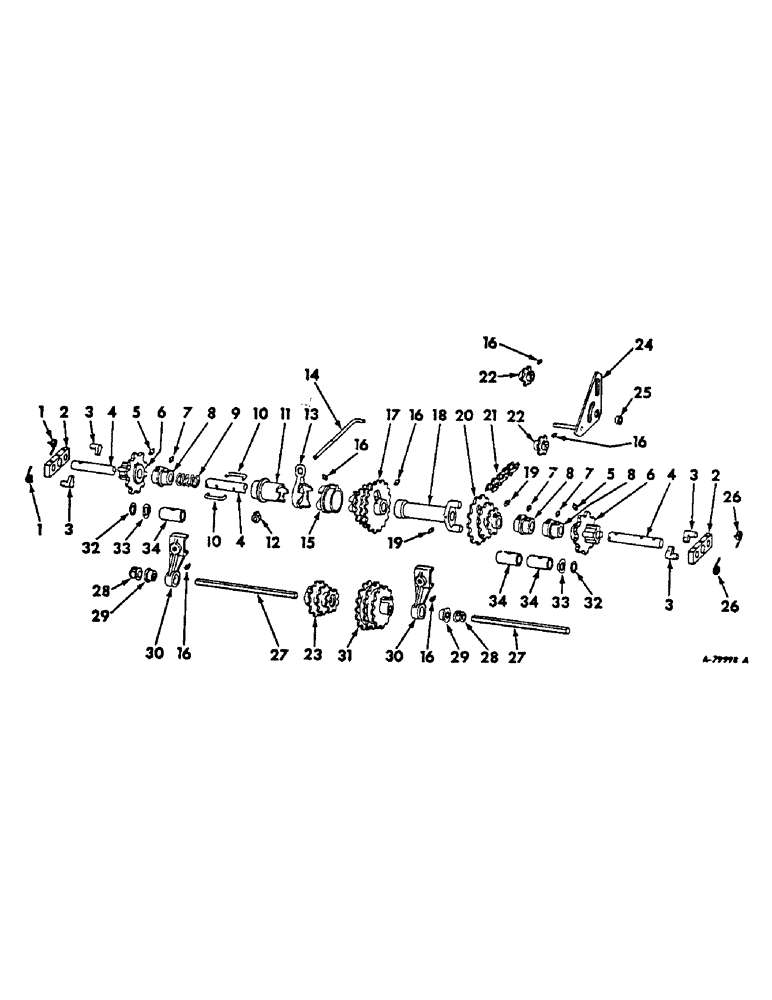

Запчасти Case IH 58-SERIES (P-09) - DRIVE UNIT, FOR 4 AND 6-ROW PLANTERS
№
Артикул
Название
Примечание
Количество
1
472721R1
SPRING
wheel ratchet LH
2шт.
2
472328R1
CARRIER
pawl
2шт.
21835R1
HEADED PIN,5/16" x 1 3/4"
PIN, 5/16 x 1-3/4 C-Z std-hd
2шт.
21630R1
COTTER PIN
PIN, 1/8 x 1 C-Z self-opening cot.
2шт.
3
472329R1
PAWL
drive sprocket
4шт.
137190
PIN,1/8" x 1 1/8"
1/8" x 1-1/8"
4шт.
4
481813R2
ROD
main drive
1шт.
21636R1
PIN, 1/4 x 1-1/2 C-Z self-opening cot.
4шт.
5
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 Nf 2 str lub, in main wheel driven sprocket
2шт.
6
484026R1
DRIVE SPROCKET
SPROCKET, main wheel drive, 10T
2шт.
6
490645R1
SPROCKET ASSY.
SPROCKET, speed change, 15T, used for slower speeds
2шт.
7
66584D
FITTING
3/16 drive type str lub
3шт.
8
481812R11
BEARING ASSY
ASSY, main drive shaft
3шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot.
3шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
1шт.
9
269182R1
SPRING
clutch
1шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
2шт.
10
PO23196
KEY
clutch
2шт.
11
472334R2
NO LONGER SERVICED
DRIVER, clutch
1шт.
12
514547R11
COLLAR CLAMP
COLLAR ASSY, control
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set
1шт.
13
472332R2
DRIVE
CAM, clutch
1шт.
14
473331R2
ROD, throwout
1шт.
21628R1
PIN
1/8 x 3/4 C-Z self-opening cot.
2шт.
15
472333R1
BEARING
clutch
1шт.
479139R1
THRUST WASHER
clutch thrust
1шт.
16
66584D
FITTING
3/16 drive type lub
6шт.
17
472335R2
DRIVE SPROCKET
SPROCKET, main drive, 18T, 16T, 13T
1шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
1шт.
21827R1
PIN, 1/4 x 1-1/4 C-Z light coiled spring
1шт.
18
472433R2
COUPLING
CONNECTOR, drive sprocket
1шт.
19
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 3/16 drive type str lub, drive sprocket connector and fertilizer drive sprocket
2шт.
20
472434R1
SPROCKET ASSY.
SPROCKET, fertilizer drive, 17T, 12T and 8T
1шт.
520175R1
CLIP
PIN, quick attachable cot.
1шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
2шт.
21
CHAIN, drill shaft drive, use 39 links of 1 in. extended pitch agricultural roller chain from 10 ft. roll marked 569088R91, (1) 457113R91 straight connecting link and (1) 457114R91 offset connecting link
1шт.
21
CHAIN, adapter drive, use four links ext. pitch roller chain from 10 ft. rolls marked, 569089R91, and one connectiong link, 456929R91, used for slower speeds
1шт.
22
472344R2
DRIVE SPROCKET
SPROCKET, 6T idler
2шт.
23
472337R1
SPROCKET ASSY.
SPROCKET, main drill shaft, 12T, 10T, 8T
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
1шт.
126156
SET SCREW,Sq Hd, 3/8"-16 x 7/8"
SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set
1шт.
24
472339R91
PLATE
ASSY, chain tightener
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2-13 x 1-1/2 C-Z hex-hd mach
1шт.
12686R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd
BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 C-Z hex. jam
1шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot.
1шт.
189316
BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5
SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap
1шт.
178374R1
WASHER
1/2 C-Z med lock
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
25
622567R1
WASHER
BUSHING, chain tightener
1шт.
26
472722R1
SPRING
wheel ratchet RH
2шт.
27
480057R1
BAR
ROD, drill1
28шт.
28
1431BX
COLLAR CLAMP
COLLAR ASSY, drill shaft
2шт.
21689R1
SCREW
1/2-13 x 3/4 C-Z sq-hd cup-pt set
2шт.
29
625569R1
HUB CAP
BEARING, insert
2шт.
30
472317R1
BRACKET
brg
2шт.
18813R1
BOLT,Hex, 1/2" - 13 x 4", Gr 2
1/2 x 4 C-Z hex-hd mach
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
31
473862R1
SPROCKET ASSY.
SPROCKET, main drill shaft
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
1шт.
126156
SET SCREW,Sq Hd, 3/8"-16 x 7/8"
SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set
1шт.
32
589937R1
WASHER
wear
5шт.
33
481810R1
WASHER
keyed
2шт.
34
484060R1
BUSHING
steel back bronzed
3шт.
Выбрано товаров: 66
